Logging tractor KL 820. - High clearance
and axle oscillation permit travel over difficult terrain and ground conditions.
Hydraulic articulated steering and all controls at operator's fingertips. Heavy safety guards and safety canopy top. Motor 66 hp at 2,500 r.p.m. 5-speed synchronized, clearance 485 mm. Turning radius 3.88 m, length 5 m, width 2.2 m.
Bulldozer blade included as standard equipment. Single lever winch hydraulically controlled.
MANUFACTURER: Kockum - Landsverk Malmö. Sweden.

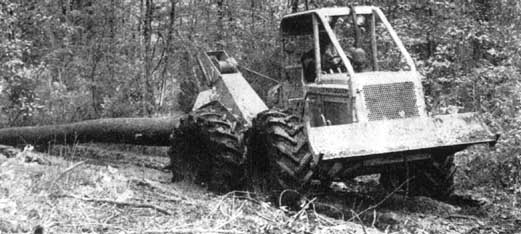

S. 7 "Hough" Paylogger. - Overall measurements: Height - overcanopy 104 in (2.64 m); overall length 198 in (5 m), tread width (16.9 X 30 tires) 74 in (1.87 m); wheelbase 92 in (2.33 m); ground clearance under frame (18.4 X 34 tires) 27 in (0.68 m). Turning radius: Outside corner of blade, raised 207 in (5.25 m).
Engines. Diesel:
|
Make |
GM |
Ford |
IHC |
|
Model |
3-53 |
220 |
D-188 |
Approx. operating weight 10,620 lb (4,817 kg)
Standard equipment: Protective canopy, nonskid operator's deck, blade and hydraulics, winch, arch and ballast box, spark arresting muffler, brush guard under engine. Optional equipment: Rear butt plate, wheel weights, "no-spin" differential on front axle lights.
MANUFACTURER: Frank G. Hough Co., Libertyville, Ill., U.S.A.

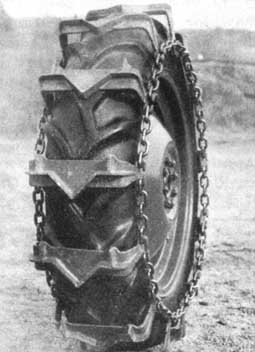

Trac-Kleet chains. - Recommended by the manufacturer for safer hillside operation, traction on hard icy ground or in soft mud.
Available for tire widths from 8 in (20.3 cm) through 16.9 in (47 cm). Easy to apply with tightening tool furnished with each set.
MANUFACTURER: Trac-Kleet Co., Inc., Dept. NL, 861 E. Church St. Elmira, New York 14902. U.S.A.

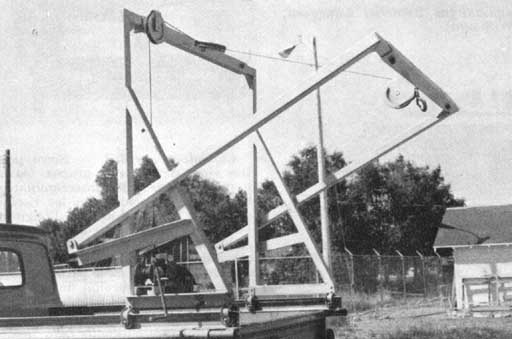

Golden Boy loader. - Constructed of 2 in (5 cm) square tubing. Can be locked in any position and left on the truck. Can be removed and replaced in a few minutes. Adjustable for any width pickup. Recommended safe load is 600 lb (270 kg). Other units for larger trucks.
MANUFACTURER: Wicklund Industries, 1520 South 6th Street West, Missoula, Montana 59801, U.S.A.

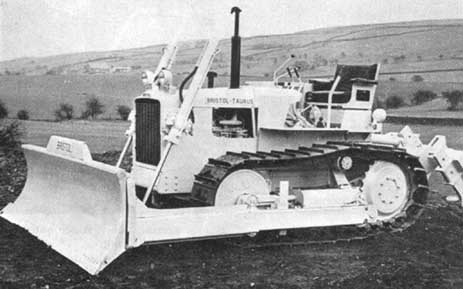

Bristol Saunders 40-hp crawler tractor for earth-moving. - Tractor is equipped with front-mounted blade that can be angled 25° and tilted 9.50 to either right or left.
Main specifications: Length 11 ft 6 in (3.5 m); width 8 ft 3 in (2.5 m). Weight (approx) 9,700 lb (4,400 kg). 40 hp Perkins diesel engine, ten-speed gearbox. Center of gravity is only 22 in (55 cm) above ground.
Particularly suitable for work up and across steep gradients.
MANUFACTURER: Bristol-Saunders Sales Limited, The Butts, Worcester, England.

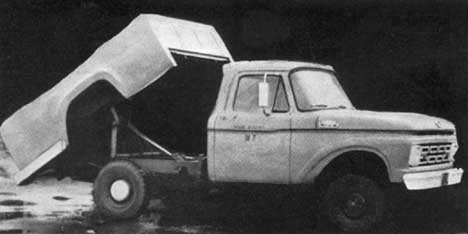

Dyco electro hydraulic lift-kit. -Converts any standard pick-up truck to a labor-saving dump truck. Motor, pump and tank unit measures 7 in X 18½ in (18 cm) x 47 cm) and sits on frame behind cab. No need for power take-off. Electric control mounted in cab on driver's side. Does not change appearance of book. Dyco lift can be moved from one pick-up to another.
MANUFACTURER Dyco Incorporated, P.O. Box 3181, Eugene, Oregon, U.S.A.

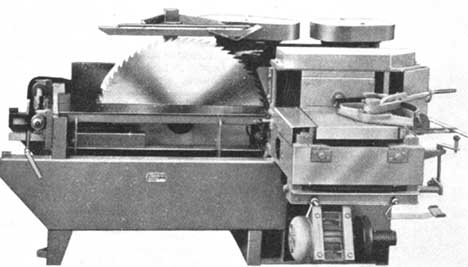

Circular resaw. - Max. diem. of saw 40 in (1 m), press rolls 20 in (50 cm) Max. opening saw fence 10 in (25 cm) press rolls 11 in (28 cm) depth of out 16 in (40 cm) feed speed 65-160 feet (20-50 m) per min., power required 20-40 hp. net weight 5,300 lb (2,400 kg). The resaw is manufactured in right-hand or left hand models.
MANUFACTURER: Bröderna Lundquist, Säter, Sweden.

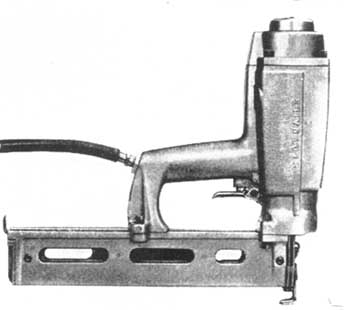

Spotnailer. - Drives 3 different types of staples, brads, pins. Interchangeable tracks facilitate keeping pace with production needs. Length 14 in (35.5 cm) height 9 in (23 cm) weight 4¼ lb (1.9 kg) loading capacity up to 160 fasteners. Recommended for furniture, cabinet manufacture, joinery, building construction, crating and packing.
MANUFACTURER: Spotnails Limited, Devonshire House, Vicarage Crescent Battersea, London S.W. 11.

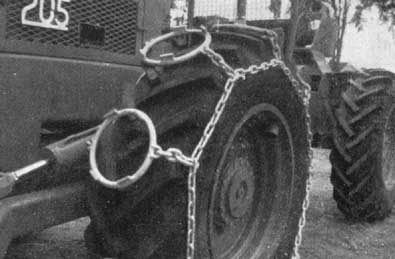

Superior traction tractor tire chain. - Works on dry or frozen ground in ice, snow and mud. Permits better steering control for skidders. Increases performance by 25 percent approx. Available for almost any size or type tires.
MANUFACTURER: Canadian Chains, P.O. Box 65, Canaan, Maine, U.S.A.

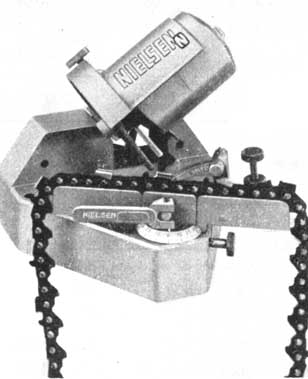

Model 50 Nielsen chain grinder. - Weighs 11 lb (5 kg). It can be wall- or bench-mounted for maximum versatility. It is readily portable and operated on standard current Model 50 will sharpen and grind depth gauges on small chipper-type chain. 110 NT motor (220 NT motor available). Grinder has 4-in (10-cm) grinding wheels and occupies space 8 x 10 in (20 x 25 cm)
MANUFACTURER: Nielsen Corporation, Eugene, Oregon, U.S.A.

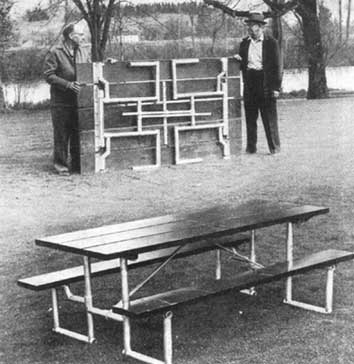

Dyco Fold-a-table. - Constructed of 1 ½-in (38-mm) and 2-in (51-mm) pipe. Benches fold flush with table-top; simple to store and transport: only 4 in (101 mm) thickness for storage. Weight 245 lb (111 kg). 2 x 10 in (50 x 254 mm), 3 X 10 in (76 x 254 mm), 4 x 10 in (101 x 254 mm), top and seats.
MANUFACTURER: Dyco Inc., P.O. Box 3181, Eugene, Oregon, U.S.A.

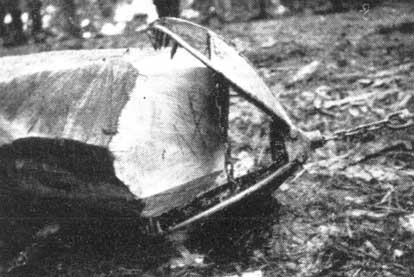

"Requin" tongs. - Tongs consist of two shells in sheet iron fitted with teeth and attached to each other by a very strong hinge. When the special chain is pulled the two shells tend to close on each other, and the greater the traction forge, the harder the teeth bite into the wood. Tongs can grip logs of 2 3/8 to 31½ in (6 to 80 cm) in diem. The rounded shape enables the tongs to slide along the ground easily.
MANUFACTURER: Office forestier central suisse, Solothurn, Switzerland.

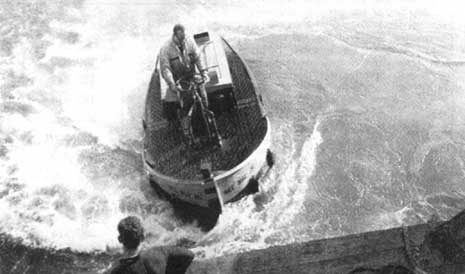

Boomboats. - Built in two sizes 13 ft and 15 ft (4 m and 4.5 m) for sorting and stowing logs or any other floating material. 360° hydraulic drive, steel construction. Engine 85 hp gas or 80 hp diesel for 13 ft (4 m) model 120 hp for the 15 ft (4.5 m) model. Weight, in service condition 13 ft (4 m) model 4,300 lb (1,950 kg), 15 ft (4.5 m) model 6,300 lb (2,850 kg).
MANUFACTURER: Maritime Industries Ltd., 445 West 6th Avenue, Vancouver 10 B.C., Canada.
