Appendix V: 3 Dimensions and Properties of Steel I Beams

Nominal size Mass per metre Depth of section D Width of section B Thickness Radius Depth between fillets d Area of section
        Web t Flange T Root r1 Toe r2
mm kg mm mm mm mm mm mm mm cm²
254 x 203 81.85 254.0 203.2 10.2 19.9 19.6 9.7 166.0 104.4
254X 114 37.20 254.0 114.3 7.6 12.8 12.4 6.1 199.2 47.4
203 x 152 52.09 203.2 152.4 8.9 16.5 15.5 7.6 133.2 66.4
203X 102 25.33 203.2 101.6 5.8 10.4 9.4 3.2 161.0 32.3
178 x 102 21.54 177.8 101.6 5.3 9.0 9.4 3.2 138.2 27.4
152X 127 37.20 152.4 127.0 10.4 13.2 13.5 6.6 94.3 47.5
152 x 89 17.09 152.4 88.9 4.9 8.3 7.9 2.4 117.7 21.8
152 x 76 17.86 152.4 76.2 5.8 9.6 9.4 4.6 111.9 22.8
127 x 114 29.76 127.0 114.3 10.2 11.5 9.9 4.8 79.4 37.3
127 x 114 . 26.79 127.0 114.3 7.4 11.4 9.9 5.0 79.5 34.1
127 x 76 16.37 127.0 76.2 5.6 9.6 9.4 4.6 86.5 21.0
127 x 76 13.36 127.0 76.2 4.5 7.6 7.9 2.4 94.2 17.0
114 x 114 26.79 114.3 114.3 9.5 10.7 14.2 3.2 60.8 34.4
102X 102 23.07 101.6 101.6 9.5 10.3 11.1 3.2 55.1 29.4
102 x 64 9.65 101.6 63.5 4.1 6.6 6.9 2.4 73.2 12.3
102 x 44 7 44 101.6 44.4 4.3 6.1 6.9 3.3 74.7 9.5
89 x 89 19.35 88.9 88.9 9.5 9.9 11.1 3.2 44.1 24.9
76x 76 14.67 76.2 80.0 8.9 8.4 9.4 4.6 38.0 19.1
76 x 76 12.65 76.2 76.2 5.1 8.4 9.4 4.6 37.9 16.3

Appendix V:3 Continued: Joists, Dimension and Properties

Miminal Moment of inertia Radius of gyration Elastic Modulus Ratio D/T
size Axis x-x Axis y-y Axis x-x Axis y-y Axis x-x Axis y-y
  Gross Net
mm cm4 cm4 cm4 cm cm cm³ cm4
254 x 203 12016 10527 2278 10.7 4.67 946.1 224.3 12.8
254x 114 5092 4243 270.1 10.4 2.39 401.0 47.19 19.8
203 x 152 4789 4177 813.2 8.48 3.51 471.4 106.7 12.3
203 x 102 2294 2024 162.6 8.43 2.25 225.8 32.02 19.6
178 x 102 1519 1339 139.2 7.44 2.25 170.9 27.41 19.7
152 x 127 1818 1627 378.8 6.20 2.82 238.7 59.65 11.5
152 x 89 881.1 762.6 85.98 6.36 1.99 115.6 19.34 18.4
152 x 76 873.7 736.2 60.77 6.20 1.63 114.7 15.90 15.9
127X 114 979.0 800.9 241.9 5.12 2.55 154.2 42.32 11.0
127X 114 944.8 834.6 235.4 5.26 2.63 148.8 41.19 11.2
127 x 76 569.4 476.1 60.35 5.21 1.70 89.66 15.90 13.3
127 x 76 475.9 400.0 50.18 5.29 1.72 74.94 13.17 16.7
114X 114 735.4 651.2 223.1 4.62 2.54 128.6 39.00 10.7
102 x 102 486.1 425.1 154.4 4.06 2.29 95.72 30.32 9.9
102 x 64 217.6 182.2 25.30 4.21 1.43 42.84 7.97 15.4
102 x 44 152.3 126.9 7.91 4.01 0.91 30.02 3.44 16.7
89 x 89 306.7 263.7 101.1 3.51 2.01 69.04 22.78 9.0
76 x 76 171.9 144.1 60.77 3.00 1.78 45.06 15.24 9.1
76x 76 158.6 130.7 52.03 3.12 1.78 41.62 13.60 9.1

In calculating the net movement of inertia, one hole is deducted from each range.

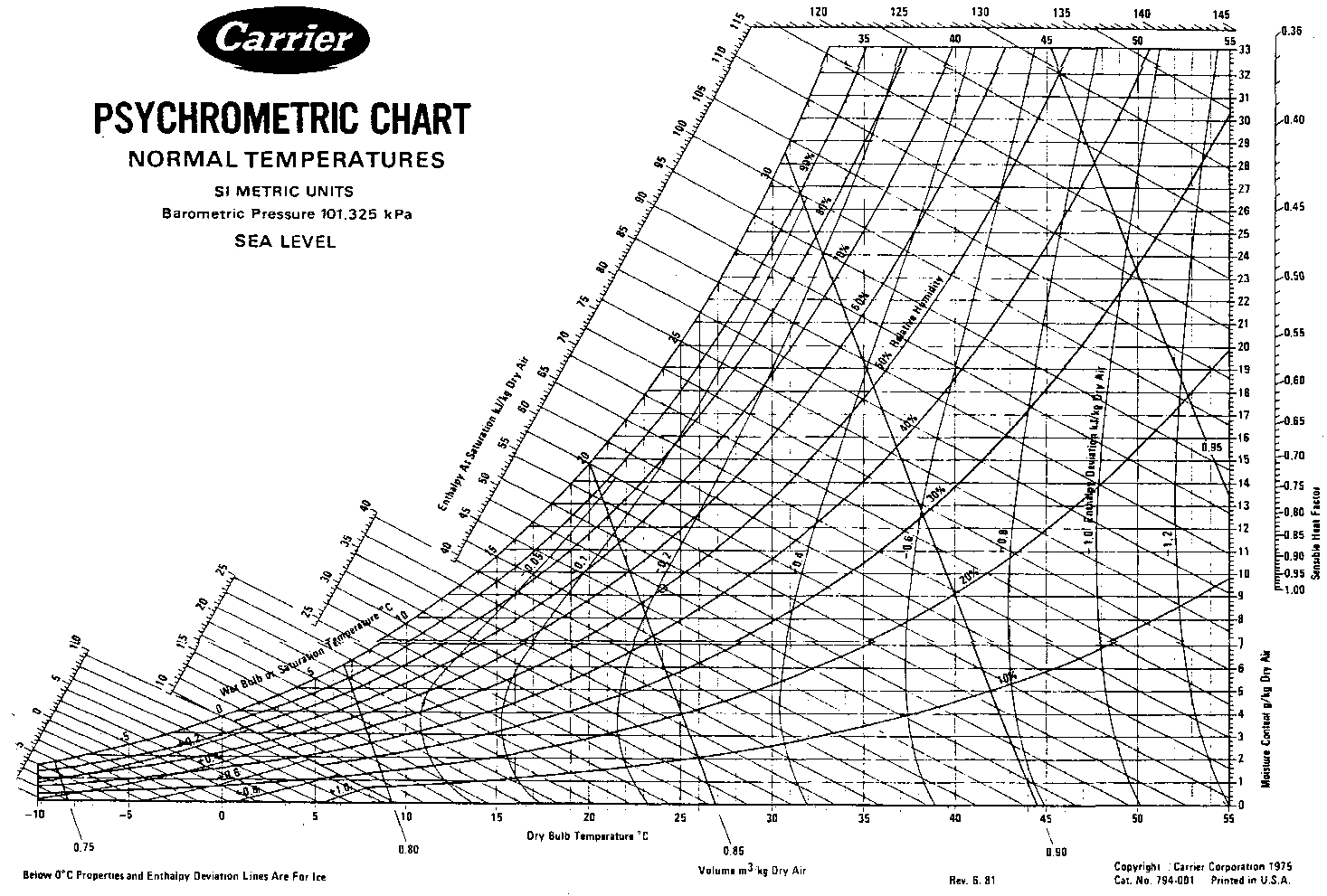

Psychrometric chart sea level

PSYCHROMETRIC CHART NORMAL TEMPERATURES Sl METRIC UNITS Barometric Pressure 101.325 kPa SEA LEVEL

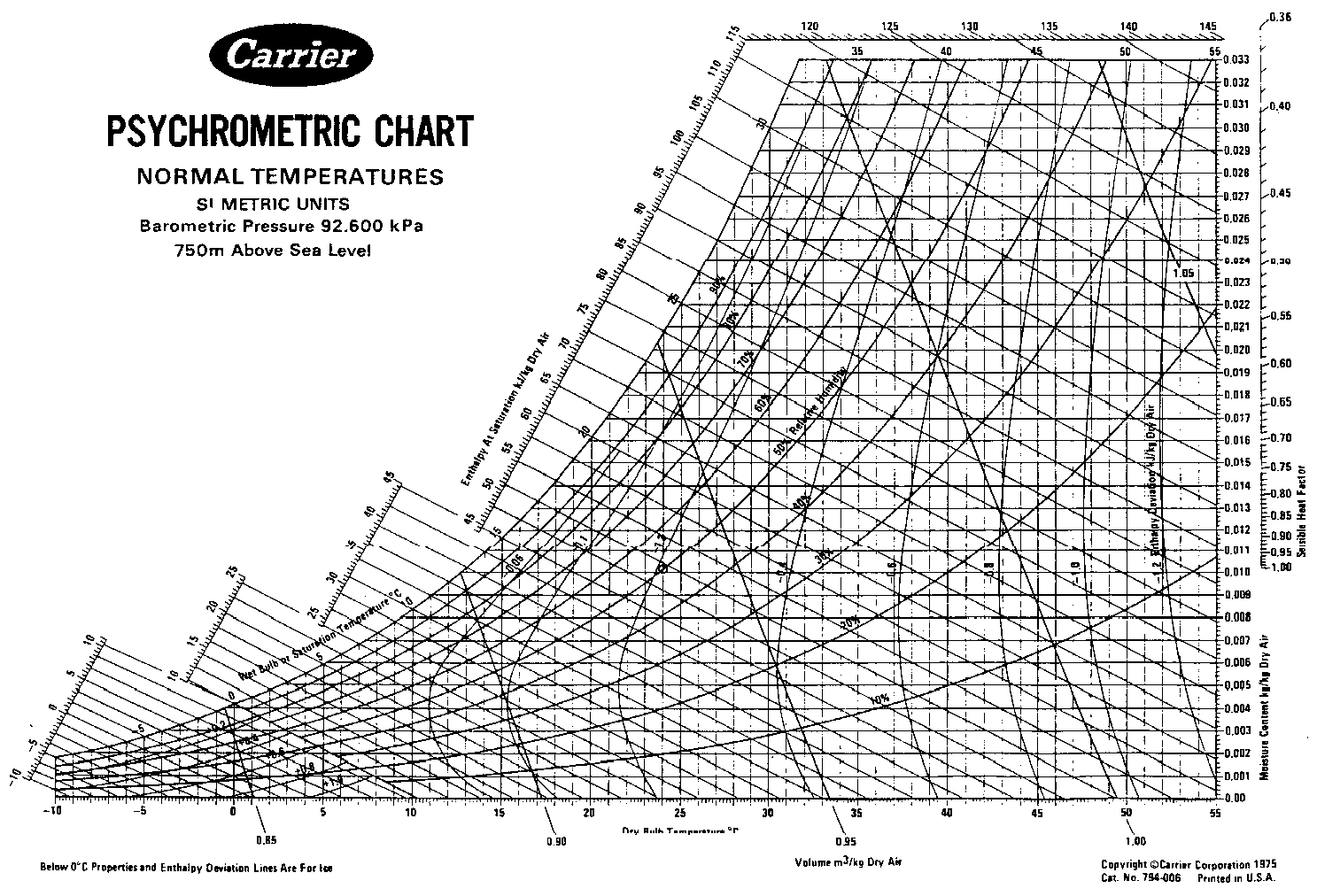

Psychrometric chart 750m above sea level

PSYCHROMETRIC CHART NORMAL TEMPERATURES Sl METRIC UNITS Barometric Pressure 92.600 kPa 750m Above Sea Level

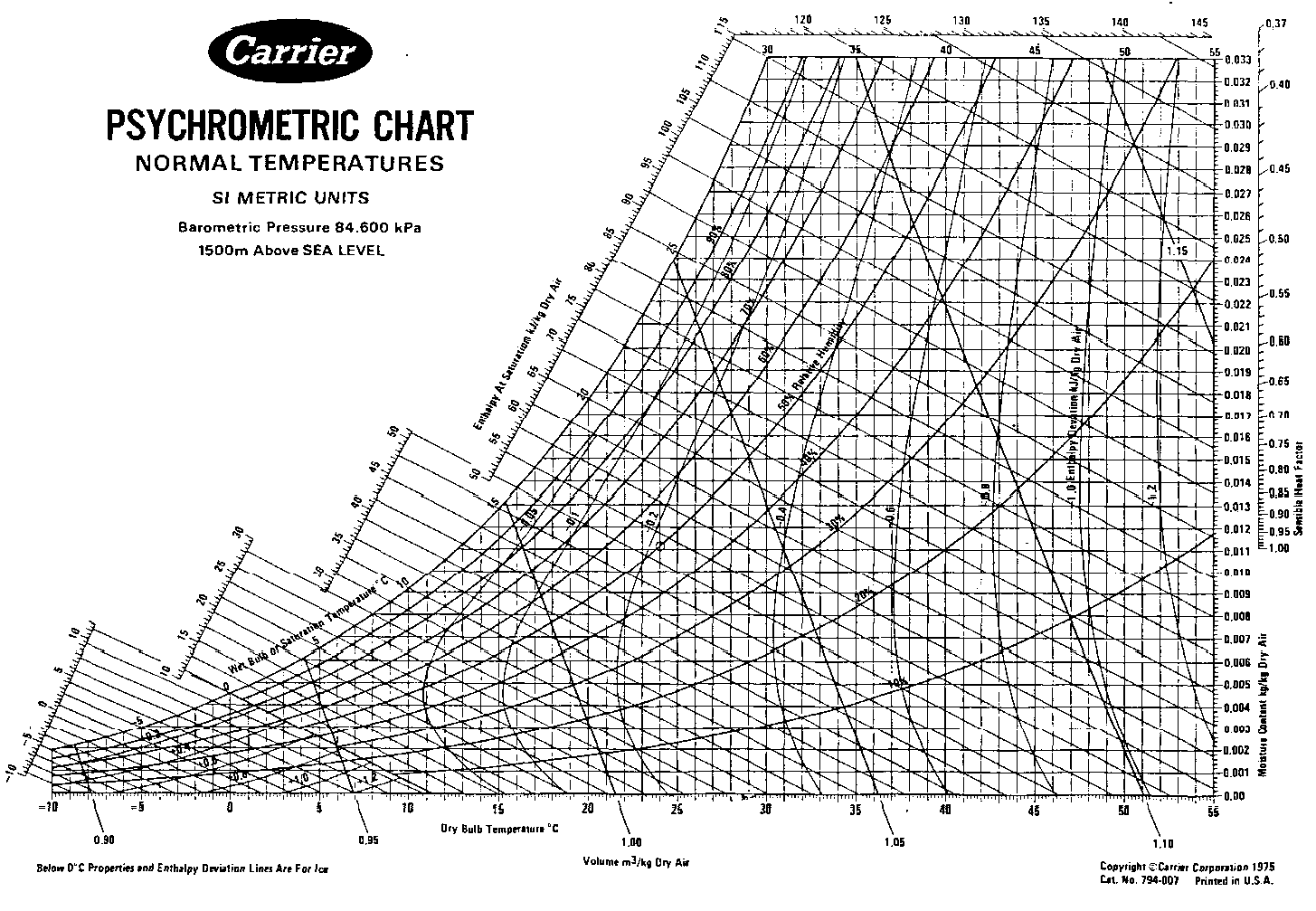

Psychrometric chart 1500m above sea level

PSYCHROMETRIC CHART NORMAL TEMPERATURES Sl METRIC UNITS Barometric Pressure 84.600 kPa 1500m Above SEA LEVEL

Typical properties of cohesionless materials

Appendix V: 7 Typical Properties of Cohesionless materials

Material Angle of Shearing Specific
  Resistance q (deg) Mass ( kg/m³)
Gravel 35 - 45 16 - 20
Sand - loose 25 - 35 17 - 19
- compact 30 - 40 18 - 21
Organic Topsoil 15 - 30 13 - 18
Broken Brick 35 - 45 1 1-16
Ashes and Clinker 35 - 45 6 - 10
Maize Corn 30 7 - 8
Rice 30 - 45 5 - 6
Millet 30 - 45 6 - 7
Soya 30 7 - 8.5
Potatoes 35 7
Fertilizer (General) 35 10

Multiplied by 10

Typical specific mass of materials

Appendix V: 8 Typical Specific Mass of Materials

Material Specific Mass ( kg/m³) *
Concrete - Unreinforced 23
- Reinforced 24
- Lightweight 7 - 15
Masonry - granite 26
- limestone 20 - 26
- sandstone 21 - 25
- slate 25 - 28
Brickwork 12 - 20
Timber
- softwoods 4 - 7
- hardwoods 6 - 12
Steel

Multiplied by 102

Typical allowable bearing capacities

Appendix V: 9 Typical Allowable Bearing Capacities

Material Allowable Bearing
  Capacity (kN/m²)
Plain concrete 2000 - 6000
Masonry or brickwork 1500 - 5000
Compact sands and gravels 300 - 600
Loose sands and gravels 150 - 400
Solid non-fissured rocks 600 - 3000
Hard clays and soft rocks 300 - 600
Stiff clays and sandy clays 150 - 300
Firm clays and sandy days 75 - 150
Soft clays and silts 0 - 75
Fill and made ground Variable

Note: The above values for soils apply where the foundation is 1m or more wide and at a depth of at least 0.6m. The allowable bearing capacity is about one-third of the ultimate bearing capacity.
