WINCH USE IN WORK WITH EXTRALIGHT CABLE SYSTEMS IN SOUTH-CENTRAL ITALY

Sanzio BALDINI, Paolo CALVANI and Rodolfo PICCHIO
Università degli Studi della Tuscia, Viterbo, Dipartimento di Scienze Forestali e delle Sue Risorse (Di.S.A.F.Ri.), ITALY

Introduction

From Italian National Institute of Statistics (ISTAT) studies, the forest cover in Italy consists of:

• 2 941 408 ha of coppice;
• 3 868 033 ha of high forest.

This case study was carried out in south-central Italy, where coverage consists of:

• 2 350 000 ha of coppice, 79.9 percent of national coppice coverage;
• 1 444 000 ha of high forestry, 37.3 percent of the national high forest coverage.

Coppice was chosen for the study because the low prices of the assortments obtained from their utilization, results in very low and sometimes negative stumping prices. Coppice in south-central Italy is located as follows:

• 950 500 ha on mountains (40.4 percent);
• 1 303 000 ha on hills (55.4 percent);
• 96 500 ha on plains (4.2 percent).

Except for some small surfaces that are in plain zones, other coppice is at the foot of mountains at an altitude above sea level varying from 300 m up to a higher vegetation limit, with average sloping over 35 percent, often characterized by an uneven terrain (see Photo 1).

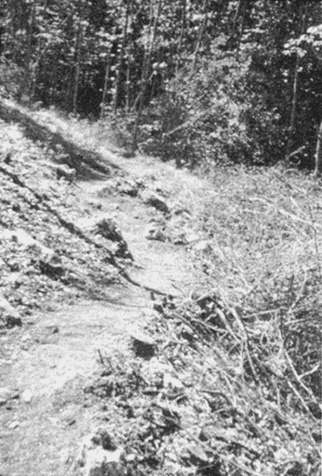

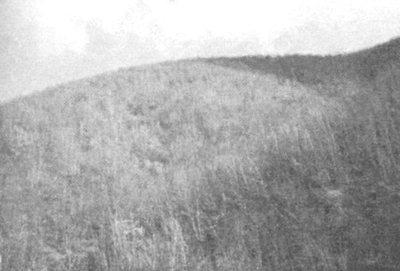

Photo 1. Coppice in uneven terrain	Photo 2 Old path before reopened as road

The forestry main roadnet, according to a study carried out in a sample region, varies from 5 to 40 m per hectare, and access for forestry utilization is difficult because these roads were made to perform functions other than the forestry one. There are no certain data about the secondary roadnet, but if the old paths are reopened (see Photos 2 and 3) as roads, there will be a density value up to 15–50 m per hectare. However, we are talking about values that are lower than those advised by forestry technicians and found in the rest of Europe.

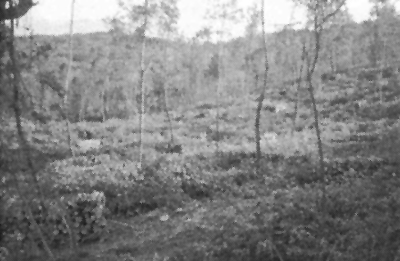

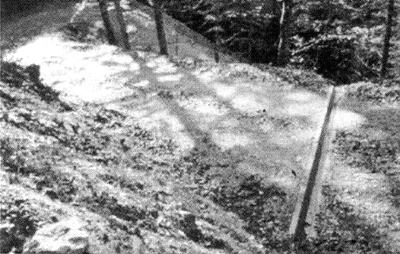

Photo 3. Old path after reopening	Photo 4. Cross-cutting and stacking wood by size

The reality in south-central Italy is very different from the national average, values decreasing to 4 to 13 m per hectare for the main roadnet density, and there are no certain values about the secondary forestry roadnet. Their practicability is difficult. From this analysis a reality emerges of diverse forests with a negative stumping price, also resulting from unsuitable work methodologies. To assure the utilization of these forests, the roadnet must be increased and the woodcutters must work with proper techniques and technologies. Such strategies increase stumping prices and make economically possible the management of those “marginal coppices” otherwise left in an advanced state of degradation with repercussions on all their efficiency functions.

Today the utilization of coppice in south-central Italy is done by cross-cutting trees in the forest and stacking wood according to size (see Photo 4), because the cutting and cross-cutting concern is different from that transported primarily by tractor or mule. We believe, on the evidence of other studies, that this methodology is too expensive because it involves cross-cutting of coppice shoots 1 m long on sloping and uneven surfaces and a double sizing of firewood.

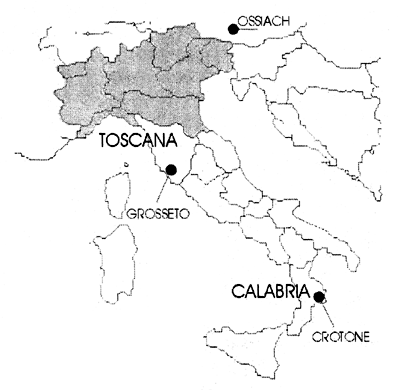

Figure 1. Map of Italy

In this case study two forestry yards were analysed, where two extralight cable systems were tested, one with a semi-automatic carriage loading of 1.5 tonne (see Photo 5), the other one with a carriage loading of 1 tonne (see Photo 6), moved by one dumb forestry which loading 4 tonne, applied to the hydraulic lift-linkage of a farm tractor. The yard where the two skylines were assembled was located in a turkey oak coppice in central Italy (Grosseto, see Figure 1).

The second one, where three skylines were assembled, was in a eucalyptus coppice in southern Italy (Crotone). The morphology, similar in the two yards, is characterized by slopes increasing up to 25 to 40 percent and not really uneven, with soil texture calcareous-argillaceous, an erosion hazard. In total, experimental tests were done on the five skylines: each one has left-to-load wood on a surface between 0.3 and 0.5 ha.

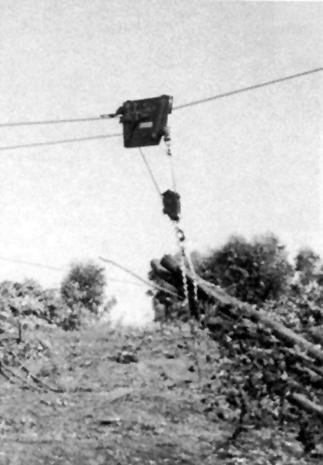

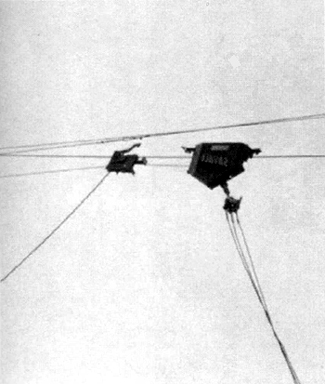

Photo 5. Semi-automatic carriage loading	Photo 6. Carriage loading by dumb forestry winch applied to hydraulic lift-linkage of a farm tractor

Table 1. Average parameters refer to hectares and to each coppice shoot of turkey oak coppice, in average 30 years old

Table 2. Average parameters refer to hectares and to each coppice shoot of Eucalyptus coppice, in average 20 years old.

Instruments and methods used for obtaining data

All cutting operations were executed by chainsaw, steering felling so as to have the bottom of the tree in extraction wood direction (see Photos 7 and 8). Wood extraction was done with two extralight cable systems, one with a semi-automatic carriage loading 1.5 tonne, the other one with a carriage loading 1 tonne, moved by one drum Krpan forest which polling capacity of 4 tonne, applied to the hydraulic lift-linkage of a tyred farm tractor by 50 kW (see Photo 9). In both yards the coppice shoots were full-tree extracted then, at landing, they were processed (see Photo 10).

In each skyline the following data were obtained and a brief explanation is provided:

Total work time is given on the grounds of a harmonized protocol, written by a European workgroup for the study in the forest (C.A.FAIR GCT 98–4421).

Work time

This category includes several subjects but in our study we took into consideration only the following ones:

1. Productive time, during which men and machines are at the workplace to carry out one or more operations. This time has been divided into Net Work Time and Dead Unavoidable Time;

2. Accessory time, divided by Service and Making, during which man and machine are in the workplace but do not do operations directly attributable to the operation under examination;

3. Work time, calculated from the sum of all the times referred to in Points 1 and 2;

4. Inoperative time, divided into several subjects, representing those moments in which man and machine are physically stationary and not employed in any type of work.

The record of the work time data required the use of chronometrical schedules provided with three mechanical chronometers, with divisions to the hundredth of a minute (1" = 10^-2 min), one of which has a totalizer function (to record the gross total work time of the whole work day), while the other two record the partial times (to record the times of different stages of the work and the dead times).

The data were also recorded on pre-printed schedules in different columns, with the worker's number and data regarding different stages of work. The productive hours, because of work times and to the materials used, were processed by teams and per worker.

• net average hour productivity, calculated according to the work times;
• gross average hour productivity, calculated according to the total time.

The crop data were recorded by means of tree callipers and metric rollers used in international measuring systems. In the laboratory we determined the different weights and density of wood.

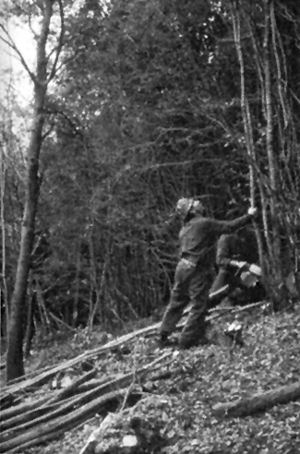

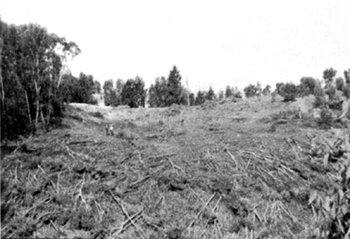

Photo 7 and 8. Felling in wood extraction direction

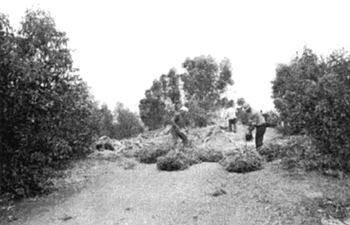

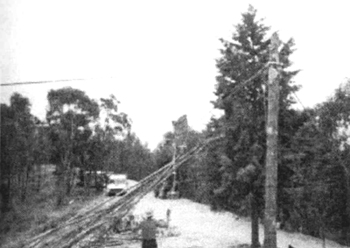

Photo 9. Wood extraction with extralight cable systems	Photo 10. Coppice shoots are full-tree extracted and processed at a landing

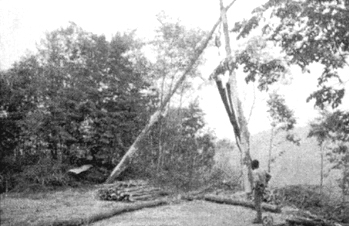

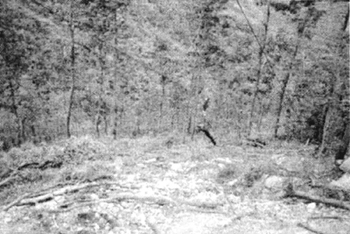

Photo 11. Skyline with 35 percent sloping average	Photo 12. A support “A” in order to keep shunt block and skyline high above the ground

Data processing and results

Turkey Oak coppice

In the turkey oak coppice two skylines were assembled 80 m in length with a 35 percent sloping average (see Photo 11). A semi-automatic carriage was used of 1.5 tonne. In unloaded areas we built a support “A” (see Photo 12) to keep the shunt block and the skyline high above the ground. The side skidding distances vary between 0 and 45 m, while the carriage returns vary between 10 and 30 m.

Table 3. Average times and skyline parameters of Line 1 and 2

Figure 2. Percentage of operative and inoperative distribution times

Eucalyptus coppice

In the eucalyptus coppice, three skylines were assembled 105 m in length with a 30 percent sloping average, and a simple 1 tonne carriage was used. In the upstream unloaded area we built a strut, made from a 6 m length pine trunk, to keep the shunt block and the skyline high above the ground (see Photo 13). This was done because there was no presence of high trees, therefore, more time was employed in assembling and disassembling the skyline, compared with the first experience. The side skidding distances vary between 0 and 25 m, while the carriage return distances vary between 15 and 70 m (see Photo 14).

Table 4. Average times and skyline parameters of Line 1, 2 and 3

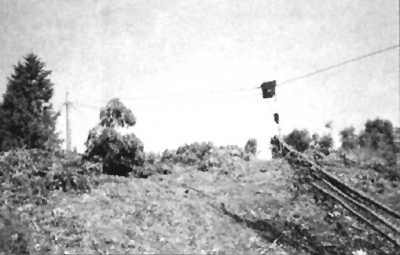

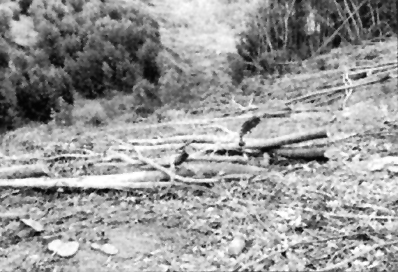

Photo 13. A strut, made to keep shunt block and skyline high above the ground	Photo 14. Varied side skidding distances
Photo 15. Full tree felling and processing made at felling site

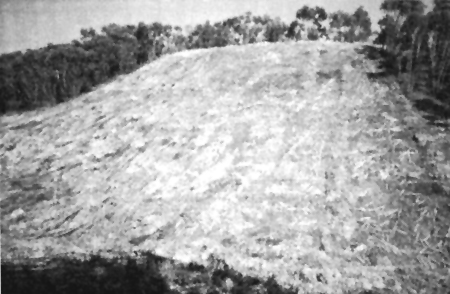

Photo 16. Felling by chainsaw and manually in small bundles (at left); full tree felling and processing by chainsaw of short trunks (at right)

Photo 17. Firewood extracted by mule and manual stacking at landing

Conclusion

From the comparative study of the five line trends shown in Figure 4, representing the trend net productivity in function of the total, we can see that, although with different trends in the five different areas, productivity decreases with increase of bunching and extraction distance. Moreover, the structural differences between two yards became evident vis-à-vis work distances, probably because of those differences a lower productivity was recorded in eucalyptus coppice. We also noted the two lines that represent first two-skyline assembly in the two different yards. As can be seen, productivity is lower owing to operator inexperience with such technologies and the non-ideal number of operators per team.

The average productivity of the following was also calculated:

• Felling by chainsaw and manual bunching of full trees in small bundles (see Photo 16, left side);
• Full tree processing by chainsaw of short trunks 1 m length (firewood) and relative manual stacking in landing (see Photo 10).

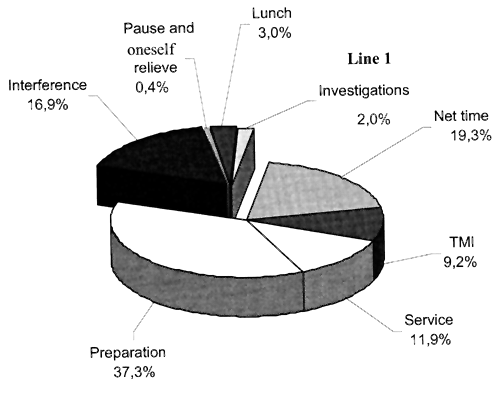

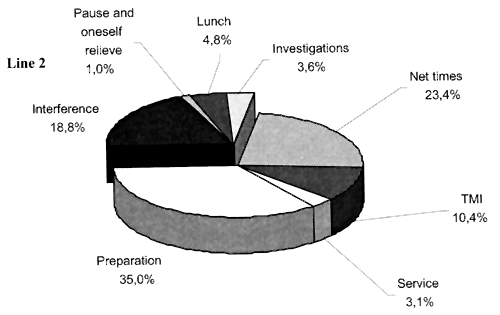

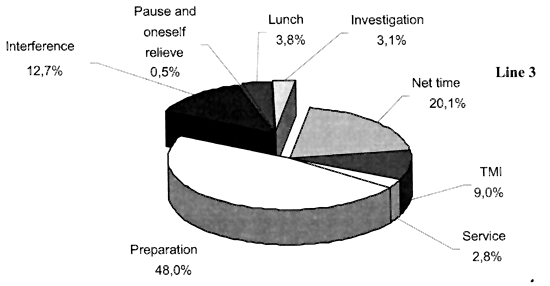

Figure 3. Percentage of operative and inoperative distribution times

y = 0,0016x² - 0,2288x + 13,221
R² = 0,739

y = 0,0024x² - 0,2809x + 16,674
R² = 0,8518

y = -0,0009x² + 0,0531x + 3,7797
R² = 0,678

y = 5E-05x² - 0,0824x + 11,15
R² = 0,6026

y = 0,0017x² - 0,3565x + 22,289
R² = 0,7066

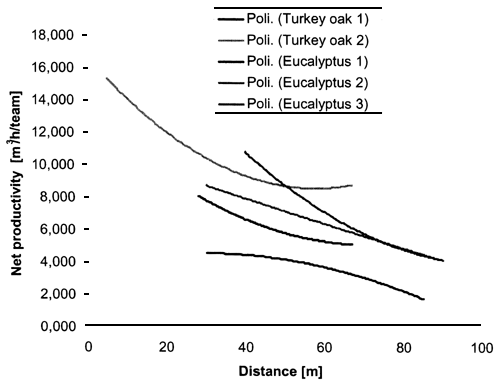

Figure 4. Net productivity trend in function of bunching and extraction distance for the five tested skylines

To make a comparison between this methodology and the traditional one (see Tables 5 and 6), processed bibliography data were the average productivity of:

• Full tree felling and processing by chainsaw of short trunks 1 m length (firewood), made at felling site (see Photo 15 and right side of Photo 16);
• Firewood 1 m length extracted by mule and manual stacking at landing (see Photo 17).

Table 5. Utilization costs for production of firewood and comparison between methodology studied and the traditional one

Table 6. Average productivity in the different yards

Regarding cost analysis, it could be wrong to keep the first line as reference and assembly in the eucalyptus coppice, because of the inexperience of the team and to the low sloping of the line. Moreover, very low productivity has been recorded, compared with the other yard, with relative cost increases for cubic metre. For the other line costs remain lower compared with traditional utilization methodologies, from 24 up to 32 €/m³ against 39 to 42 €/m³. Regarding the productivity examination, productivity per worker in turkey oak, Line 1, is greater compared with the second one in which there was one extra operator. This makes it possible to achieve lower costs. Therefore, it is ideal if the team is made up of three workers.

The new bunching and extraction technologies and methodologies tested are competitive compared with traditional methods, without considering the lower surrounding impact - especially with respect to soil - when compared with one of the most natural extraction methods, such as the mule. Full tree extraction methodology is quite effective in the case of chip production in landing instead of firewood production. Moreover in high fire risk areas, the removal of slashes is an efficient fire-prevention methodology.
