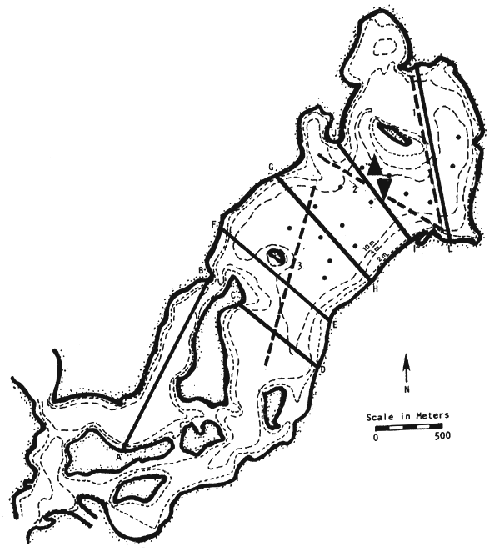

Figure 1 Location of transects surveyed by hydroacoustics and netting in Lake Tegel 12 – 14 November 1985. Grid transects are labelled A-B, C-D, E-F, G-H, I-J and K-L. The three trawl transects (1 = Greenwich; 2 = Hasselwerder; 3 = Reiswerder) are indicated with dashed lines. The positions of the gill net and the upward looking transducer are marked with an upward pointing and a downward pointing triangle. Dots = aerators.

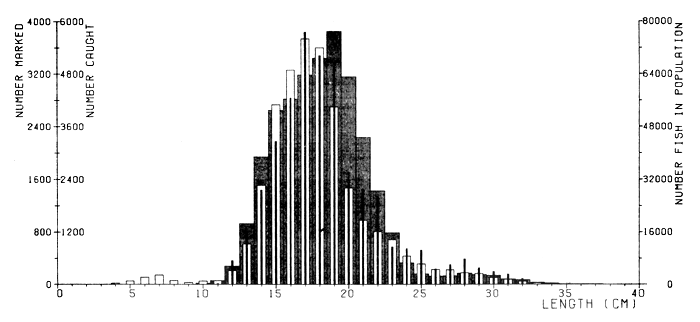

Figure 2 Length distributions of marked, captured and recaptured fish. Blank columns = caught, black columns = marked, lines = recaptured.

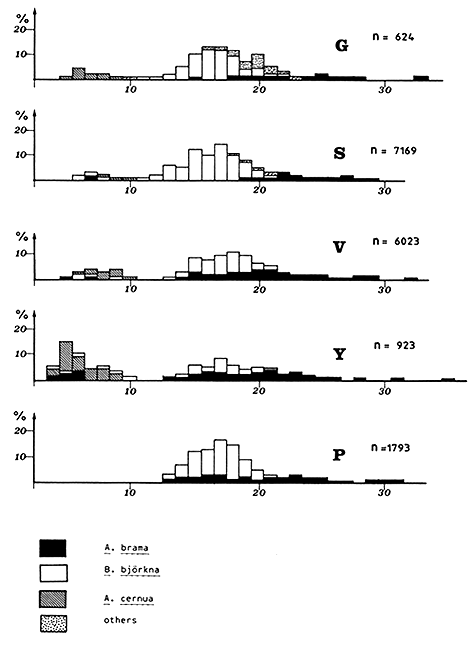

Figure 3 Percentage length frequency histograms of the fishes from the different nets. G = gill net, S = Seine, V = Commercial Vendace Trawl, Y = Young Fish Trawl, P = Pikeperch Midwater Trawl. For specific numbers (n) see Table 6.

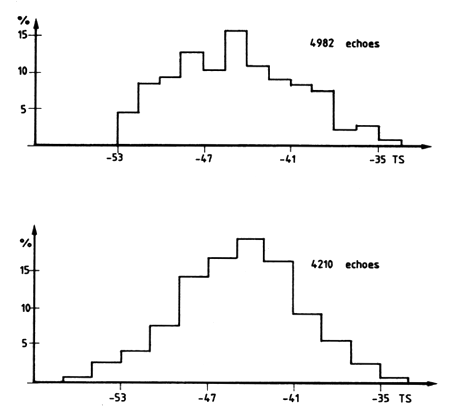

Figure 4 Target-strength distributions from split-beam system and from dual-beam system based on single-fish echoes. Upper figure: all transects of split-beam system combined; lower figure: night-time transects of dual-beam system combined.

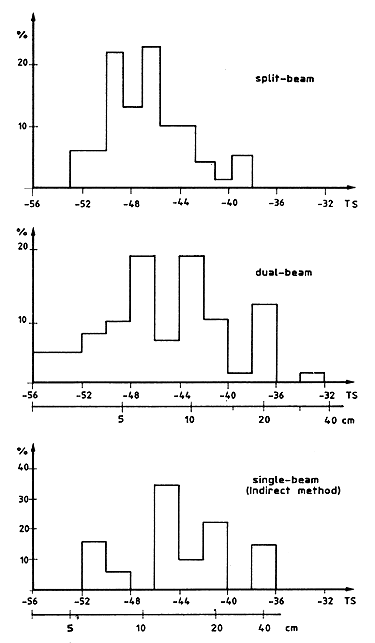

Figure 5 Size distribution of fish on trawl transect 3, measured with 3 acoustic systems. Compare Figure 6.

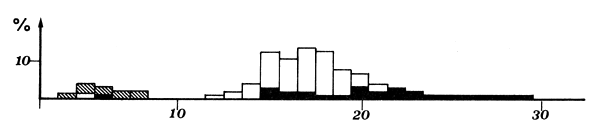

Figure 6 Percentage length-frequency of the fishes trawled at transect 3. Compare Figure 5.

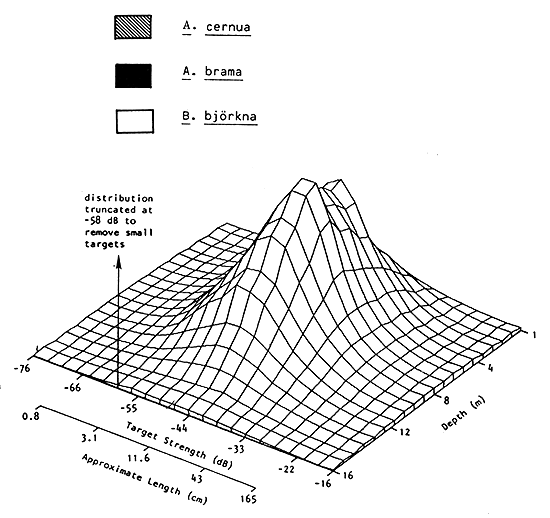

Figure 7 Dual-beam system. Target-strength distribution by depth for large-fish echoes for all 420 kHz night-time transects combined. Depth = range + 0.5 m. Each echo treated as an independent sample.
EIFAC OCCASIONAL PAPERS ISSUED DOCUMENTS OCCASIONNELS DE LA CECPI PUBLIES
EIFAC/OP 1 | Summary of the organized discussion on the economic evaluation of sport fishing (1968) |
EIFAC/OP 2 | Bibliography on nutritional requirements of salmonoid fishes (1968) Bibliographie sur les besoins nutritifs des salmonidés (1968) |
EIFAC/OP 3 | Application of electricity to freshwater fishery management and development in Ireland (1969) |
EIFAC/OP 4 | Les pêcheries de la Roumanie et la pêche roumaine (1970) |
EIFAC/OP 5 | Potential uses of waste waters and heated effluents (1971) |
EIFAC/OP 6 | Investigation of a method for comparing the efficiency of portable fishing machines (1973) Etude d'une méthode permettant de comparer l'efficacité d'appareils de pêche électriques portables (1973) |
EIFAC/OP 7 | Economic issues and opportunities facing Europe in the field of sport fisheries (1973) Problèmes et possibilités économiques de la pêche sportive en Europe (1973) |
EIFAC/OP 8 | Pond fish culture in Czechoslovakia (1973) |
EIFAC/OP 9 | A review of feeding equipment in fish culture (1973) |
EIFAC/OP 10 | Bibliography on nutritional requirements of warm water fishes (1975) Bibliographie sur les besoins nutritifs des poissons vivant en eaux chaudes (1975) |
EIFAC/OP 11 | Survey of ownership and utilization of inland fisheries in various European countries and Canada (1976) |
EIFAC/OP 12 | Glossary of inland fishery terms (1978) Glossaire de termes utilisés dans le domaine des pêches intérieures (1978) |
EIFAC/OP 13 | Historical review of EIFAC activities (1981) |
CECPI/OP 13 | Aperçu historique des activités de la CECPI (1981) |
EIFAC/OP 14 | EIFAC experiments on pelagic fish stock assessment by acoustic methods in Lake Konnevesi, Finland (1982) |
EIFAC/OP 15 | EIFAC experiments on pelagic fish stock assessment by acoustic methods in Lake Constance (1985) |
EIFAC/OP 16 | National reports of EIFAC member countries for the period January 1984 - December 1985 (1986) |
CECPI/OP 16 | Rapports nationaux des pays membres de la CECPI pour la période janvier 1984 - décembre 1985 (1986) |
EIFAC/OP 17 | EIFAC experiments on pelagic fish stock assessment by acoustic methods in Lake Tegel (1987) |
