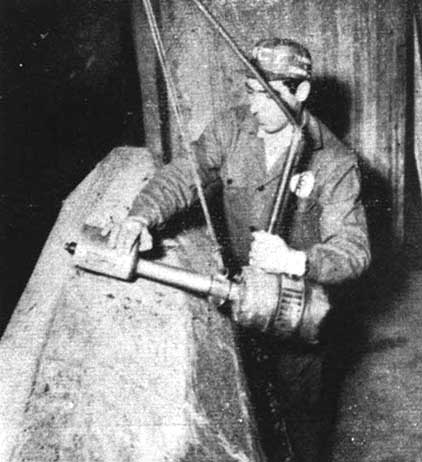

Transportable debarking machine
Transportable debarking machine. Cutter run by petrol or electric motor operated by hand. Min. and max. log diameter 100-250 mm; min. and max. log length 0.70-5 m. Refueled by hand. Electric or petrol engine 2 ½ hp.
Manufacturer: Ing. A. Magini Via Vittorio Veneto, 44, Udine, Italy.

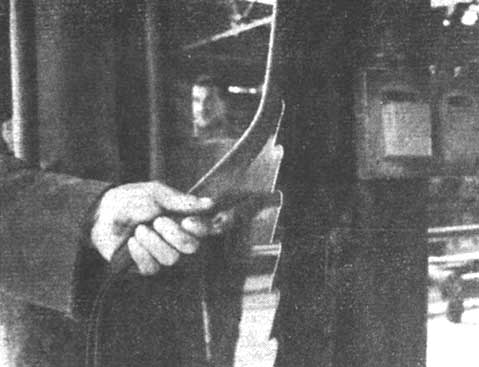

Protective saw sleeve. - Protective sleeve can be applied to any bandsaw blades. Useful both for transport of blades during delivery of saw and for transportation within the sawmill when they have to be carried to sharpening shop.
Manufacturers: Thames Rubber and Leather Co., London E.C.4.

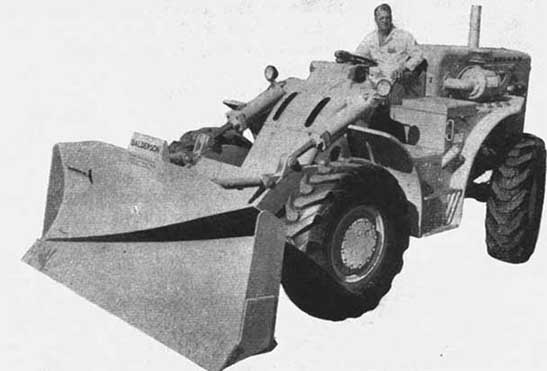

Balderson frame-mounted dozer. Consists of an inside push frame attached to trunnions that weld on Caterpillar 966 main frame, and a straight angling or U-blade to fit any particular application: 986 regular tilt cylinders control dozer. Lift control valve provides hydraulic pitch control of blade. Larger than standard tires may be used, weighted for maximum traction. Push plate counterweight may be attached on rear for additional weight, as well as rear pushing.
Manufacturer: Balderson Inc., Wamego, Kansas, U.S.A.

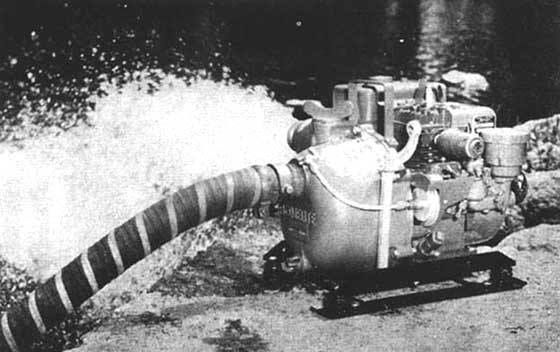

Homelite automatic idle control
Homelite automatic idle control. Automatically idles the pump engine when water drops below the suction line strainer and brings the engine up to full speed when water level rises.
Diaphragm (vacuum-sensing device) is connected through tube to suction elbow. When water drops below suction hose strainer and vacuum in line is lowered, diaphragm relaxes causing spring-loaded throttle to move into idle posit ion. When seepage water covers strainer and vacuum picks up, diaphragm operates, pulls throttle rod and brings engine up to full pumping speed.
Available for Homelite 2 in. (5 cm) and 3 in. (7.62 cm), 2-cycle engine driven centrifugal pumps and 1 ½ in. (3.8 cm) and 2 in. (5 cm), 4-cycle engine-driven centrifugal pumps.
Manufacturer: Homelite, Port Chester, New York, U.S.A.

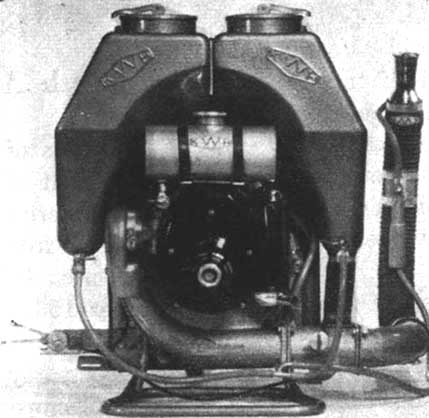

KWH-25TT twin tank mistblower duster combination
KWH-25TT twin tank mistblower duster combination. Manufactured in 9 different models. Nozzle gives good combination of air volume and air speed and breaks liquid up into fine mist which engulfs plants and leaves completely. Higher concentrates used than with ordinary hydraulic spraying, ranging from 5× to 20× stronger. Usually a 10× concentrate is used. No dripping results. Photo shows 25TT model with twin tanks of 3.7 gal. (14 lit.) capacity. One tank can be used for liquid spray and the other for dust. Weighs approx. 27 lb (12 kg).
Sales agent: Vandermolen Export Co., North Caldwell, New Jersey, U.S.A.

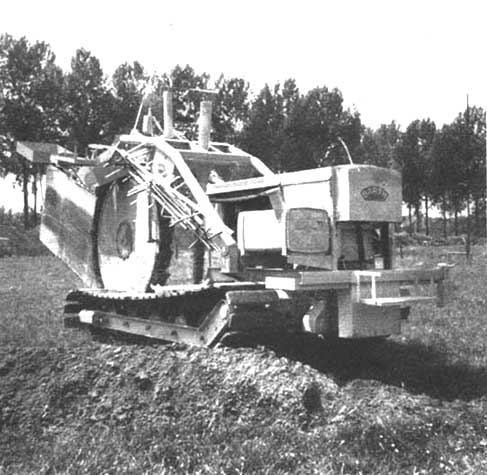

Drainage machine "Barth" - Digs grooves 8 in. (20 cm) wide and 1ft to 4ft 5in. (30 to 130 cm) deep. Completely hydraulic. Digging wheel lowered and raised by parts of an inch. Lays drainage pipes automatically. Motor: 50 hp at 1,400 rev./min. Drive: 2 gearboxes, speeds 90-660 yards (82-600 m) hour, fwd. and rev. Measurements: length 27 ft (8.2 m); width 7 ft 7 in. (2.3 m); height 10 ft 4 in. (3 m); weight 7 tons.
Manufacturer: Maschinenfabrik D. Barth and Son, 's-Gravendeel, Netherlands.

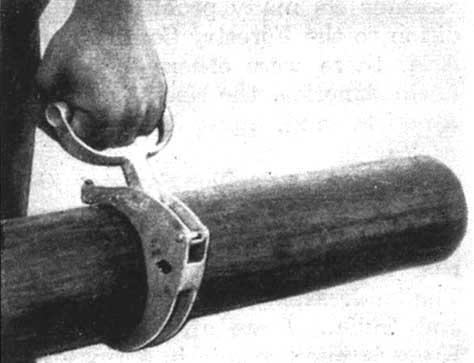

Manu-sur - Nine models which can be used to grasp any objects and materials which have to be carried by hand, such as boards, poles, tubes, bags, crates, rails, cables, metal sheets, etc.
Manufacturer: Charles Lèbre, 35 Avenue de l'Orangerie, Sainte-Geneviève-des-Bois, S.-et-O., France.

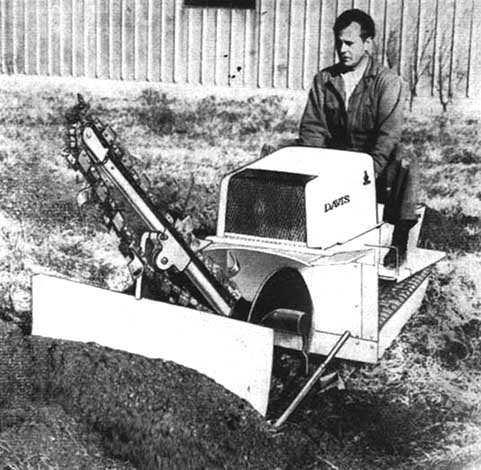

Trencher Davis T. 66. -Crawler type trencher and backfill machine with hydraulic variable speed drive, forward and reverse, digs 3 to 4 in. (7.8-10.1 cm) wide down to 66 in. (167 cm) deep or 12 in. (30 cm) wide and 30 in. (76 cm) deep. Weight 1,350 lb (617 kg). Powered by 12.5 hp engine. Adjustable boom telescope. Special trailer to transport machine also available.
Manufacturer: Davis Mfg. Inc., Wichita 13, Kansas, U.S.A.

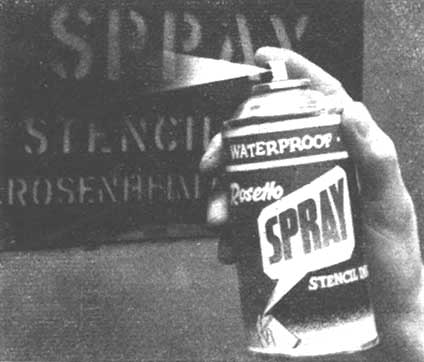

Stencil air spray, ink - Particularly suitable for stenciling boxes, cartons, crates, metal drums, bales, tarpaulins, concrete, stone, etc., on porous and nonporous surfaces Waterproof and nonflaking colors: black, blue, green, white, red, orange, yellow and aluminium. Useful for color coding on metals, steel bars, or other materials for speedy identification or inspection marking. Blue ink can be used as a design-layout fluid. Quick drying; to operate, only shake contents and press button.
Manufacturer: J. and H. Rosenheim and Co. Ltd., Craigton Industrial Estate, Glasgow S.W. 2, England.

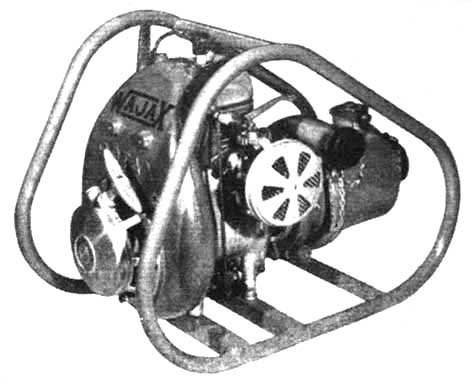

Wajax mark 2 pump. - Horizontal 4-stage centrifugal pump, 2 in. (5 cm) suction, 1 ½ in (3.8 cm) discharge, standard forestry thread. Can be used for fighting fires, etc., as well as filling tanks. Takes rough treatment and can handle muddy water; can be run by unskilled operators. Quick action method of coupling pump to power head simplifies servicing and transporting. Needs minimum maintenance. Weight: 15 lb (6.8 kg); free flow capacity 76 imp gal (345 l.) p.m.. Shut-off pressure 280 psi (20 kg/cm2). Engine: one cylinder, two-cycle, air-cooled; fuel consumption 8 gal (36 l.) per hour. Over-all dimensions: height 16 ½ in. (40.7 cm); width 15 in. (38 m); length 22 in (55.9 cm). Weight of complete unit: 60 lb (27 kg).
Manufacturer: Wajax Equipment Limited, Montreal 9, P.Q., Canada.
