The continual development of forest utilization and woodworking industries is reflected the increasing demand for information on new equipment. For some time now, as recommended by the FAO Conference, the Division of Forestry and Forest Products has been collecting such information and supplying it on request to member nations. It is evident that there is sufficient interest to warrant the publication of a regular feature in UNASYLVA, treating with new developments in nursery and reforestation, with forest fire fighting, construction and maintenance of haulage routes, felling and trimming of trees, haulage of timber, sawing, seasoning, and transportation of sawn timber, and other related fields.
An inquiry directed to countries in which such equipment is manufactured or which had expressed a desire to be supplied with information, elicited general approval of this project, with the exception of one country. Since the chief value of the feature will lie in current reporting, data will be published as speedily as it becomes available.
Descriptions of equipment are based on information supplied by government services and manufacturing firms. FAO can assume no responsibility for any claims made by manufacturers All requests for further information should be directed to the addresses indicated.
FAO's Division of Forestry and Forest Products will appreciate receiving data on new equipment manufactured anywhere in the world. Specifications should be accompanied by clear, sharp photographs (glossy prints) FAO however, can accept no obligation to publish all such information received.

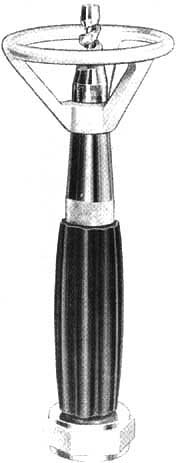

BETE G. 5 FIRE NOZZLE. - This new unit can be changed from full fog to straight stream or complete shut-off by a turn of the handle. It can be operated on any pressure from 30 to 150 lb. - using 8 gal. per minute for fog and 10 gal. per minute for straight stream.
Bete Fog Nozzle Inc., 85 Pierce street, Greenfield, Mass., U.S.A.

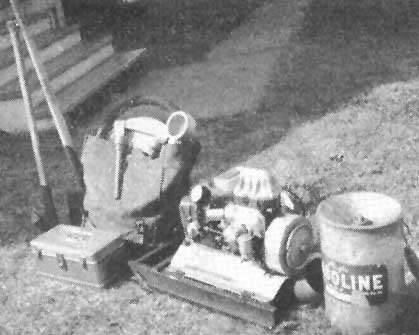

FIRE-FIGHTING UNIT. - A unit which can be easily transported by two men, the weight being only 100 lb. This equipment consists of a new Pacific Marine "A" pumper weighing 36 lb. mounted on a pack frame, light weight accessories 1-inch linen hose in knap-sack, small suction hose, and enough mixed gasoline to supply the pumper for the ordinary small shore fire. Small ax, pulaski, and lady shovel complete the kit.
Photograph: United States Forest Service.

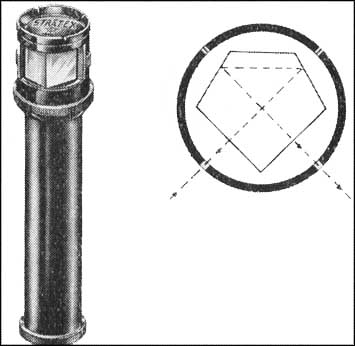

PENTAPRISME SURVEYING INSTRUMENT
PENTAPRISME SURVEYING INSTRUMENT. - Weighing 2½ oz.; height 4½ in. Lays out right angles rapidly. Permits quicker working than ordinary method with compass for 90° and its multiples. Gives an erect positive image.
Stratex Instrument Company, 1861 Hillhurst Ave., Los Angeles 27, Cal., U.S.A.

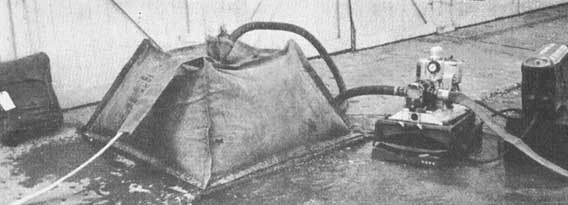

HARODITE CANVAS RELAY. - This photograph shows a typical relay setup - canvas relay tank, 150 gal. (U.S.) capacity, pumper, and special gas container.
Knapsack at extreme left contains a 300-gal. (U.S.) canvas relay tank folded up for transporting to a fire.
Harodite Finishing Co., North Dighton, Mass., U.S.A.

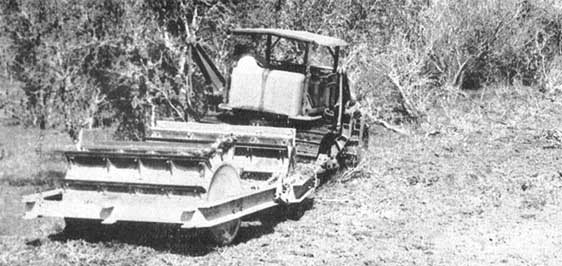

MARDEN DUPLEX. - Although mainly used for farming, this tractor-drawn machine is also suitable for the construction and maintenance of firelines. It is effectively used in all places where a draw tractor can penetrate.
It consists of one or several cylinders weighted with water. The full-length sharp blades staggered around the drum can cut branches up to 2 in. in diameter. An articulated yoke gives a great deal of flexibility to the machine and permits its use on any terrain. The very simple coupling system allows for the use of the drums either side by side or in tandem, according to the work to be performed. This machine is built in several designs.
Marden Manufacturing Co., Auburndale, Fla., U.S.A.

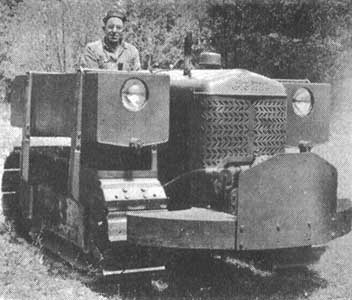

MICHIGAN TRACTOR FOR FOREST-FIRE CONTROL
MICHIGAN TRACTOR FOR FOREST-FIRE CONTROL. - A tractor-tanker unit has been developed by the Michigan Department of Conservation at the Forest Fire Experiment Station, Roscommon, Mich. U.S.A. It is based on a wide-gauge crawler tractor, model AG-6. Mounted on the front of the tractor is an industrial model pump employing rubber rotors. The pump is assembled into a compact gear housing that develops proper pump speeds, and is driven by a front power take-off. The tractor driver can operate the pump at will by means of a selective clutch. A bumper and guard are installed at the front of the tractor.
Two 135-gal. tanks are mounted, one above each track frame. The entire tank assemblies are borne by the track frames and no weight is attached to the tractor frame itself. The headlights are recessed into the bodies of the tanks. Features of the tanks include bolt-down tops permitting easy cleaning and interior maintenance, perforated pipes open at both ends of the tanks.
The left tank includes a live reel with a hose capacity of 100 feet, the rear of the right tank accommodates the battery. Valves permit the water to be circulated free of pressure within the tank systems, or to be passed under pressure into the live reel at will, the pump is thus primed at all times and ready for immediate use. Shut-off nozzle guns are used with this machine. The pump installation has been designed to permit pumping from the mounted tanks or from a tanker trailer towed behind the machine, or it may be employed for conventional line pumping. Pressures range up to 200 lb. and capacities range up to 40 gal. per minute.
Full tool equipment is contained in a sturdy tool box mounted on one tank; a tray on the right tank allows convenient access to shovel, ax, chain, or other accessories issued and used with crawler tractors.
The unit shown is the pilot model completed in May 1950 after almost two years of experimental development at the Forest Fire Experiment Station. The entire outfit can be manufactured in kit form ready for installation onto any crawler tractor.
Photograph: United States Forest Service.
HANNIBAL TRACTOR. - The Unipower Hannibal is a new four-wheel-drive timber tractor fitted with a crane at the rear of the chassis and a self-contained winch for forestry work. It has facilities for a fifth wheel attachment for special transport, such as trailers for heavy indivisible loads of up to 25 tons gross, and can also be adapted for shunting-yard duties.
The vehicle, powered by a five-cylinder oil engine, RAC rating 36.5 hp. has ten speeds forward and two reverse through a five-speed primary gear-box and a two-speed selective transfer ease The engine power is also used to operate the winch which can exert a pull of over 64,000 lb. A land anchor of heavy section steel is suitably located to prevent rearing when heavy timber is being roped. The winch is fully visible from the driver's seat.
In operation the anchor is lowered and the winch used to drag trees, etc., into any desired position. By means of an inclined ramp the trees can also be pulled onto a trailer. The cable is then detached from the tree, wound back on the winch the land anchor is raised and the tractor used to tow the loaded trailer. The crane will lift lighter trees direct to the trailer.
Universal Power Drives Ltd., Aintree Road, Perivale, Middlesex, England.

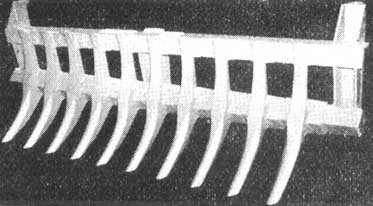

FLECO ROOT RAKE. - This rake is interchangeable with the moldboard on the bulldozer arrangement. It is used on general land clearing, clearing right of ways, etc., and is designed for use with the Caterpillar tractor.
Florida Land Clearing Equipment Co., Jacksonville, Fla., U.S.A.

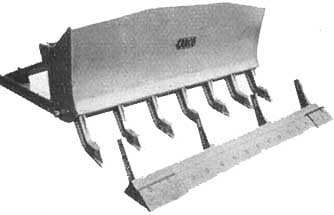

COMBINATION MOLDBOARD. - This type of combination moldboard may be used either for land clearing or for dirt moving. With clearing teeth removed, the lower section of the dirt-moving blade slips into the teeth pockets and is secured in place.
Pacific Car and Foundry Co., (Carco), Renton, Wash., U.S. A.

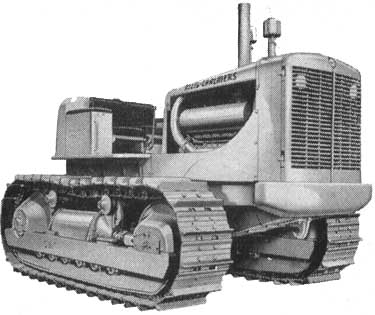

NEW ALLIS CHALMERS HD 20-DIESEL TRACTOR
NEW ALLIS CHALMERS HD 20-DIESEL TRACTOR. - Specifications: general dimensions - over-all length, 15 ft. 10 ¾ in.; overall height, 7 ft. 10 5/16 in.; over-all width, 9 ft. 1 ¼ in.; ground clearance, 16 1/8 in.; shipping weight, approximately 41,800 lb.
Engine: General Motors Diesel - net engine h.p. at flywheel, 175; R.P.M. governed at full load, 1,700.
Speed and maximum drawbar pulls: low, 3.0 m.p.h., 65,000 lb.; high, 7.0 m.p.h., 32,000 lb.; reverse - standard, 5.5 m.p.h., 45,000 lb.; optional, 4.5 m.p.h., 61,500 lb.
Allis Chalmers Corp., Box 512, Milwaukee, Wis., U.S.A.

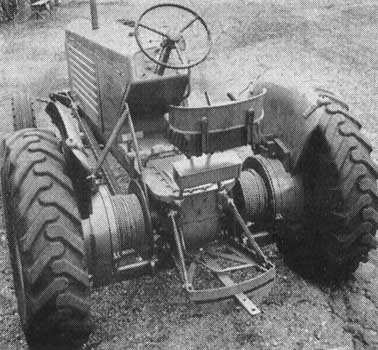

HELLER DOUBLE DRUM TRACTOR WINCH
HELLER DOUBLE DRUM TRACTOR WINCH. - The Oliver Corporation is in the process of equipping the 77 and 88 model tractors with a Heller double drum winch mounted on the rear axle, one on each side of the driver's cab. The specifications of the winch are as follows:
Cable drum length, 10 in.; cable barrel diameter, 8 5/8 in.Pooling capacity of each drum, 3/8 in. cable - 910 ft.; ½ in. cable - 480 ft.; 5/8 in. cable - 303 ft.; ¾ in. cable - 220 ft.
Maximum line pull model 77, low-speed, double drum - 27,467 lb.; low-speed, single drum - 13,733 lb. Maximum line pull model 88, low-speed, double drum - 36,500 lb.; low-speed, single drum - 18,250 lb.
Six speeds, one reverse.
Photograph: Oliver Corporation, Cleveland, Ohio, U.S.A.

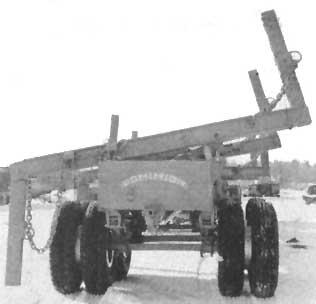

HYDRAULIC ELEVATING RAM. - Rear view of trailer equipped with a hydraulic elevating ram which elevates the bolsters to an angle of 15 degrees.
By means of a single hand-operated hydraulic pump and ram system the bolsters may be raised either together or each one independently as selected by the operator. They may be tilted to either side as required. When the bolsters reach an angle of 10 degrees the stakes on the side to which it is to be dumped automatically trip, discharging the load.
Equipped with two pumps, the operator works on the side opposite to that which the load discharges, thereby minimizing the possibility of accident as a result of logs falling on the operator.
Dominion Truck Equipment Co., Ltd., Kitchener, Ont., Canada.

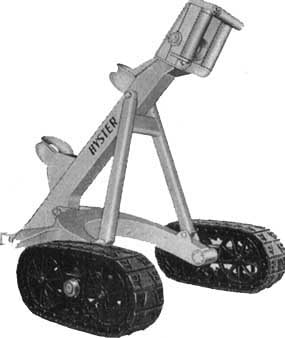

NEW HYSTER 78 LOGGING ARCH. - This new arch has been materially reduced in weight as compared with the older model. Another advantage of the new logging tool is its increase of approximately one foot in roll height to the top of the main roll, allowing bigger payloads per truck. It is especially designed for use with Caterpillar D7 and D8 truck type tractors. Also shown on cover.
Hyster Co., 2902 N.E. Clackamas Street, Portland 8, Ore., U.S.A.
ROSS HYDRAULIC FORK LIFT TRUCK - SERIES 24
ROSS HYDRAULIC FORK LIFT TRUCK - SERIES 24: maximum load, 26,000 lb.; lifting height, 14 ft.; turning radius, 17 ft. 6 in.; 4 speeds forward and reverse; weight 31,000 lb.
The Ross Carrier Co., Benton Harbor, Mich., U.S.A.

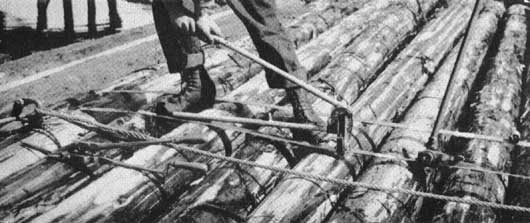

STEEL STRAPPING FOR SAW LOGS. - For transport convenience saw logs are bound with steel strapping ranging to 2 x.050 in. The strapping is tensioned and sealed around the packages by means of two simple tools, namely a stretcher and a sealer.
Acme Steel Co., 2840 Archer Ave., Chicago 8, Ill., U.S.A.

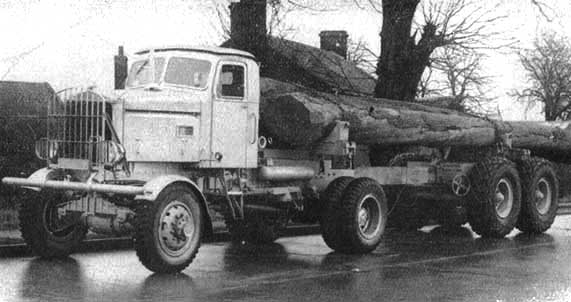

FOUR-WHEEL-DRIVE FOUR WHEELER. - Engine: six-cylinder Diesel - Meadows G.D.C. 630; Maximum torque, 420 at 1,000 RPM at sea level; B.H.P., 130 at 1,900 RPM at sea level; 6 forward speeds and reverse.
Chassis dimensions: wheelbase, 168 in.; over-all length of chassis, 228 ½ in.; over-all width of chassis, 104 in.; over all height, 111 in.
Gross vehicle weight, 44,800 lb. maximum.
Load capacity 15 tons.
Tires: front - 36.00 x 8 - 40.00 x 8 - 8.25 x 20 - 10.00 x 20 - 11.00 x 20 - 11.00 x 24 - 12.00 x 24; rear twins - 36.00 x 8 - 40.00 x 8 - 10.00 x 20 - 11.00 x 20 - 11.00 x 24 - 12.00 x 24; single - 14.00 x 16 - 14.00 x 20 - 16.00 x 20.
Scammel Lorries Ltd., Watford, Herts., England.

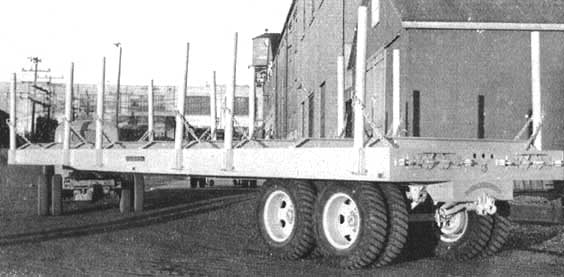

TRAILER FOR HAULING PULPWOOD. - Illustrates a 30-ton trailer for hauling pulpwood.
The bolster stakes are released by the tripping of the chain held in place by dogs at the rear of the trailer.
Dominion Truck Equipment Co., Ltd., Kitchener, Ont., Canada.

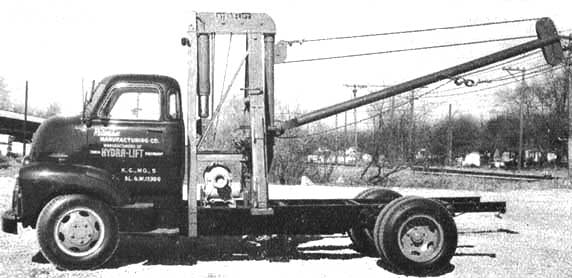

HYDRAULIC TRUCK CRANE. - Hydra-Lift can be easily installed on any type of truck and used with any make winch. The truck driver can control all swinging and lifting from his cab. The boom swings in a 180-degree are, lift 100 degrees. It can be used for straight-line pull and to load and unload off the truck bed.
The boom can be easily telescoped from 12 ft. to 17 ft. or 22 ft.; capacity varies from 6,400 lb. with boom at 12 ft. to 2,200 lb. with boom at 22 ft. Hydra-Lift takes up 37 in. behind the cab allowing full use of truck bed. It can be installed on any type truck frame with a few bolts.
Pitman Manufacturing Co., 300 West 79th Terrace, Kansas City, Mo., U.S.A.
R. B. LUMBER ROLLER BED. - Truck equipped with an R. B. lumber roller bed. Rollers may be kept locked or unlocked according to requirements. A ratchet crank applies to either end of any roller and half or all the load can be rolled off.
This device is especially used when vehicles are loaded with sawn timber.
The R. B. Co., Guinotte and Euclid Ave., Kansas City, Mo., U.S.A.
