Interest in the development of forest utilization and woodworking industries is reflected in the continual demand for information on new equipment. FAO's Forestry Division collects such information and passes it, on request, to Member Governments. Some of the information collected is published here. FAO accepts no responsibility for the claims put forward by manufacturers.

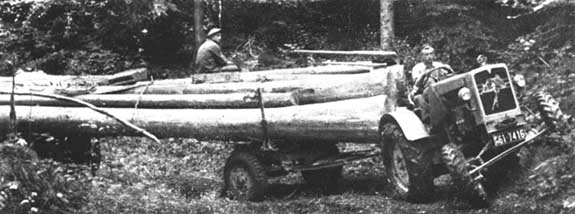

M.A.N. TRACTORS (AS 330 FH and AS 330 FA). - 30 h.p. model AS 330 FH rear wheel drive; 30 h.p. model AS 330 FA 4-wheel drive; 4 cylinder diesel engine, 1500 r.p.m. A 2.5 h.p. bosch starter permits engine to start even in the coldest weather without any pre-heating equipment. Specifications: speeds, 5-speed gear box with speed range of 2.2-12.5 m.p.h. (3.5-20 km.p.h.) or with 6-speed gear box having crawling speed of 1.1 m.p.h. (1.8 km. p.h.): max. drawbar pull, rear-wheel drive, 3,300 lb. (1,500 kg.), 4-wheel drive, 4,000 (1,814 kg.), max. trailer load on level, 13.2-16.5 short tons (12-15 tons); length, 9.88 ft. (3,015 mm.), height, 67 in. (1,700 mm.). AS 330 FH: width, 62.2 in. (1,580 mm); weight, approx. 3968 lb. (1,800 kg.); min. turning radius, approx. 100 in. (2,5 m.). AS 330 FA: width, 66.1 in. (1,680 mm.); weight, approx. 4188 lb. (1,900 kg.); min. turning radius, approx. 118 in. (3 m.).
M.A.N. Ackerdiesel, Maschinenfabrik Augsburg-Nürnberg, A. G., Katzwanger Strasse 101,Nürnberg 24, Germany
M.A.N. TRACTORS (AS 330 FH and AS 330 FA).

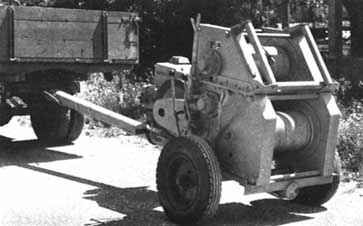

TWO-DRUM WINCH (Models M. 5, M. 8 and M. 10). - Winch, together with a 15-20 h.p. gasoline or diesel motor, is mounted on a two-wheel undercarriage. Self-opening guide pulleys and cableway supports are in steel and wood. Specifications: Model M. 5 consists of a main drum holding 500-700 m. cable 9 mm. diameter and running at 0.85 m./sec. or 1.40 m./sec., giving a maximum drawing force of 1,800 kg. Auxiliary drum running at 1.30 m. or 2.00 m./sec. serves for the smaller auxiliary gable (1,000-1,400 m., 5 mm. diameter). Model M. 8, giving gable speeds between 0.5 and 4 m./sec. and exerting a max. drawing forge of 3 tons. The main drum normally holds 750-1,000 m. cable of 9.5-11 mm. diameter. Model M. 10 has 1, 2 or 3 drums and a max. drawing force of 4 tons.
Alois Krasser Maschinenbau, Edelschrott, Steiermark, Austria.
TWO-DRUM WINCH (Models M. 5, M. 8 and M. 10).

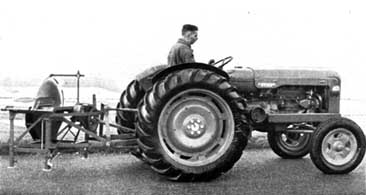

WREKIN MOUNTED SAW-BENCH. - Standard equipment includes 24 in (61 cm.) or 30 in. (76 cm.) diameter saw blade, top saw guard and parting knife, fully adjustable fence plate slotted to allow wood packing to be fitted if required; a machined feed roller to fit the fence spindle, and bottom saw guards. Specifications: table, 4 ft. (1.2 m.) long 2 ft. (0.6 m.) wide, 2 ft. 6 in. (0.7 m.) high - adjustable; 30 in. (76 cm.) saw gives cut of 12½ in (32 cm.), 24 in. (61 cm.) saw gives out of 9½ in. (24 cm); weight, 532 lb. (240 kg.), net weight, 476 lb. (216 kg.).
The James Clay (Wellington) Ltd. Wrekin Foundry, Ketley, Wellington, Shropshire, England.
JUNIOR WARPING TUG. - Specifications: length: 30 ft. (9 m.), beam: 8 ft. (2.4 m.); depth: 3 ft. 6 in. (1 m.); draft: 2 ft. 2 in. (0.7 m.), plating: sides and bottom, 3/16 in. (5 mm.), deck, 10 gauge (2.58 mm.); frames: 3/8 in. × 2 in. (1 × 5 cm.) spaced at 18 in. (46 cm.); keelsons: 6 in. (15 cm.) - 1/beam, decks: conforming with shape of hull with 4 in. (10 cm.) bulwark. Wheelhouse: combined engine room and wheelhouse removable as one unit. Entirely built of 16-gauge (1.29 mm.) steel plate. Controls all within reach of helmsman. Power: Lister diesel 30 h.p. engine with 2:1 reduction end hull cooling; 100 gallon (455 liter) fuel tanks. Winch: Maffey winch can be provided with capacity of 2,000 ft. (610 m.) of ½ in. (1.3 cm.) cable with level winder, and all necessary sheaves.
Maffey Steel Boats Ltd. Fort Frances, Ont., Canada.

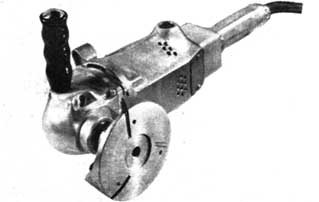

SANDER WITH PLANER HEAD. - 9 in. (23 cm.) tool for removing bark, fitted with a rotary planer head, performs many wood surfacing and shaping operations. Also available is a planer head with rounded surface for deep gouging. Specifications: weight, 18¾ lb. (8.5 kg.); no-load spindle speed of 4,000 r.p.m., optional spindle speed of 5,000 r.p.m. also available; overall length, 19½ in. (50 cm.). Planer head shown has a flat face for surfacing and semi-finishing. Sander uses standard 115 or 220 voltage with universal motor.
The Black and Decker Manufacturing co. Towson 4, Maryland, U.S.A.

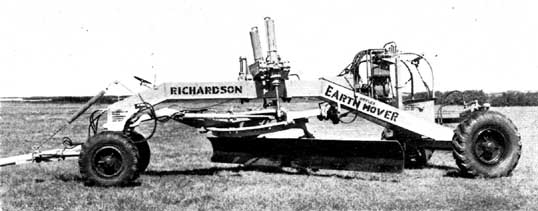

RICHARDSON GRADER (Models 16-H and 18-H). - Large blade grader which requires only 2 h.p. motor to pull it with blade lifted; swinging motor base with five holding positions permits motor to operate in near level position on incline grader work adjustment is made by operator in moving one or two of the 10 hydraulic control levers. Specifications: Model 16-H: min. h.p. 62; weight without scarifier, 14,800 lb. (6,700 kg.); wheel base, 21 ft. 3 in. (6.5 m.). Model 18-H: min. h.p. 78; weight without scarifier, 15,900 lb. (7,200 kg.); wheel base, 21 ft. 3 in. (6.5 m.).
Richardson Road Saskatoon, Saskatchewan, Canada.
RICHARDSON GRADER (Models 16-H and 18-H).

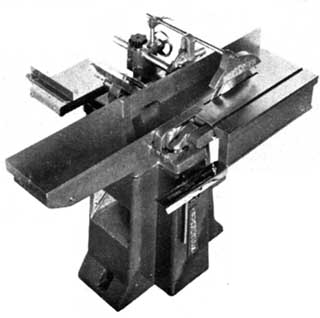

PLANER, CIRCULAR SAW AND BORER (Type QJ). - 9 in. (23 cm.) surface planer with 4 ft. (1.2 m.) overall length of precision ground table can be transformed quickly into circular sawbench which supports timber between saw and fence. The ½ in. (1.3 cm.) capacity borer has a 12 in. × 8 in. (30 cm. × 20 cm.) precision ground table and is usable irrespective of whether saw or surface, or neither, is operating. Fence cants to 45° and serves both planing and sawing operations; its micro-accurate adjustment is made instantly by means of a rack and pinion. Specifications: Max. planing width, 9 1/8 in. (23.3 cm.); speed of cutter block, 6,000 r.p.m.; 1½ h.p. motor; max. size of circular saw, 9 in. (23 cm.); max. depth of cut, 2½ in. (6.4 cm.); speed of saw, 10,600 ft./min. (3,200 m.); weight of planer, saw and borer (with electrics), gross, 840 lb. (381 kg.), net, 672 lb. (305 kg.).
Houghton Engineers Ltd., Fence Houses, Co. Durham, England.
PLANER, CIRCULAR SAW AND BORER (Type QJ).

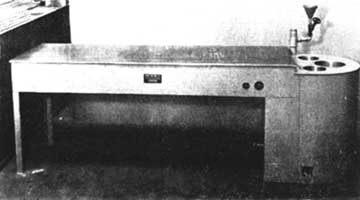

ELECTRICALLY HEATED VENEERING TABLE - Table constructed of sheet iron; frame composed of electrically soldered sections. Electrical apparatus situated in lower part of table with electrodes submerged in water tank; heating by steam gives uniform temperature of 105° C. Level of water regulated by stopcock. Table has anti-rust base. Specifications: length, 1,800 mm.; width, 600 mm.; height, 750 mm.; approx. weight 200 kg.; power, 5 kw.; time required for heating, 15-20 minutes.
Elcalor S.A., Fabrique d'Appareils Electrothermiques, Aarau Switzerland.
ELECTRICALLY HEATED VENEERING TABLE

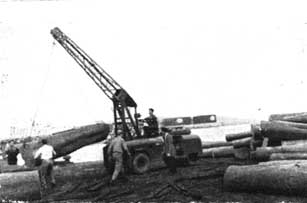

CRANE BELOTTI. - Crane is equipped with 4-cylinder petrol engine and, on request, with a diesel engine; 4 speeds forward, 4 reverse; hydraulic brakes and leverage system. Petrol consumption, 1 liter for 3 hrs. operation. Max. load, 7 tons.
Belotti, Via Francia, Genoa, Italy.
