Bandsaw Machine with Tilting Table

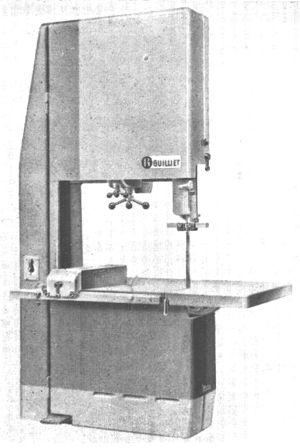

Bandsaw Machine with Tilting Table. - The main frame is in one piece with a complete guarding of all working parts. Table can be tilted and locked in any position by means of rose handwheel. Stop provided for positive positioning of table in its horizontal position. Machine provided with pedal-operated brake which acts directly on the bottom saw pulley, ensuring progressive yet fast stopping. Machine can be connected to a dust extraction plant. Motor completely enclosed inside main frame. Saw pulley diameter 36 in. (90 cm.), table 48 x 41 in. (122 x 104 cm.). Maximum tilt of table 450.
MANUFACTURER: Guilliet, Rivington Street, London E.C.2.

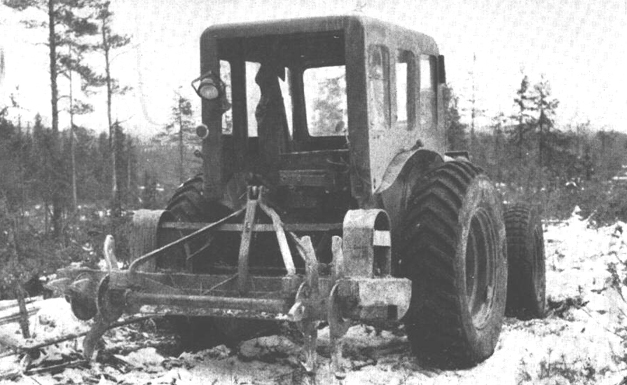

Tapio's Cultivator. - The cultivator prepares planting spots in two rows. It can be attached to the lifting mechanism of a wheel tractor, hydraulic pumps make it completely automatic. Two pump cylinders joined by a hose through which oil runs from one cylinder to the other and thus releases the mechanism for soil preparation in turn. These mechanisms, which consist of two pairs of pegs and two arms alternatively placed, rotate. The cultivator weighs approx. 470 kg.
MANUFACTURER: Keskumetsäeuera Tapio, Helsinki, Finland.
R. C. M. Clearer. - Can be used for scrub clearing and crushing. It is attached to a track-type tractor equipped with scrub-cleaning rake, bulldozer or stumper. The notched wheels chop the roots left in the ground. Stones and rocks are no obstacle as the disk rolls over those it cannot extract.
MANUFACTURER: Rethéloise de Construction Mécaniques, Rethel, Ardennes, France.
Fire Line Trencher. - Model K2 Rotokitten is a self-propelled fire line trencher. Specifications: Engine-gasoline 5.75 hp, independent clutching for stop and go, with or without trenching disc running. Speeds: 3 fwd, 1 rev. Trenching mechanism cuts clean 12 in. (30 cm.) fire line. Operates in rocky soil and on steep terrain. Dimensions: weight 250 lb. (113 kg.) width 32 in. (81 cm.) length 44 in. (100 cm.).
MANUFACTURER: Merry Equipment Inc., Leavenworth, Washington, U.S.A.

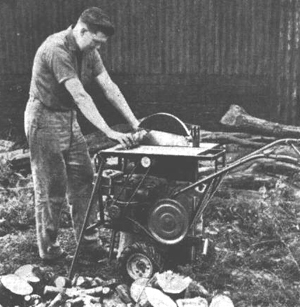

Wolseley Merry Tiller. - Machine designed for the cultivation of the soil. A range of attachments can be fitted, such as bulldozer blades, trailer seat, pump, spraying unit. By fitting the flexible shaft arrangement it can be turned into a machine which supplies power for chain saw. A saw bench for fuelwood can be used either with or without the truck. A heavy tubular front stand ensures maximum rigidity when sawing and the stand can be quickly turned out of the way for transport.
MANUFACTURER: Wolseley Engineering Ltd., Witton, Birmingham 6, England.

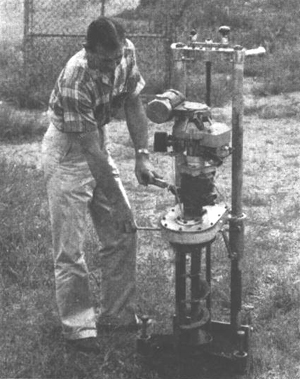

Minuteman Mobile Drill. - Drills in soil and rock, the power is transmitted from engine to drill spindles through a centrifugal clutch, a four -speed transmission and a sealed gear case.
Specifications: height 63 in. (160 cm.), width 22 in. (56 cm.), length 23 in. (5.7 cm.), weight 150 lb. (68 kg.), engine 6.5 hp. Speeds: 3 fwd., 1 rev. Drilling capacities: auger drilling diameter 3-12 in. (7.630 cm.), depth 50 ft. (15 m.) with 3 in. (7.5 cm.) augers,
MANUFACTURER: Mobile Drilling Inc., Indianapolis, Indiana, U.S.A.
Portable Pump Filter. - Portable pump filter renders water fit for drinking. Pump housed within body of filter candle provides 15-25 gal. (68-114 1.) filtered water per hour. Stersayl self sterilizing candles recommended so that a supply of bacteriologically safe water can be obtained without boiling candle or water. Dimensions in box: 15 x 5 X 4 in. (37.8 X 11 x 10 cm.), weight 7 lb. (3.2 kg.).
MANUFACTURER: British Berkefeld Filters Ltd., Tonbridge, Kent, England.
Surveyscope. - Device that can measure horizontal distances by using a known or estimated vertical reference height of 6 ft. (1.8 m.). The Surveyscope permits measurement of distances up to 1,000 ft. (300 m.) at a glance. The physical aspects of the Surveyscope are as follows: 4 71, in. (12 cm.) long and 1 in. (2.5 cm.) in diameter.
MANUFACTURER: Vexilar Engineering Co., Edina, Minneapolis, Minnesotta, U.S.A.

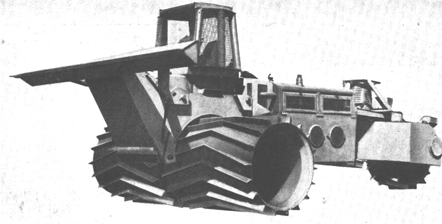

Tree Crusher. - Equipped with three electrically powered 6 ft. (1.8 m.) diameter steel rollers. Weighs 42 tons. At a speed of 3 m.p.h. (5 k.p.h.) the crusher rolls down trees at 5 acres (2 ha.) per hour. A 20 ft. (6 m.) wide push pumper applies leverage over 10 ft. (3 m.) up on the tree to break root system free of ground. As tree falls, blade studded rollers perform their work leaving a compressed mat of chopped trees and brush.
Length 39 ft. 10 in. (18.4 m.), width 20 in. (50 cm.) and height 15 in. (38 cm.). Electric power supplied by a diesel engine driven LeTourneau AC generator and LeTourneau DC generator. One single rheostat unit controls speed power and braking while a finger tip switch controls steering.
MANUFACTURER: R. G. LeTourneau Inc., Longview, Texas, U.S.A.

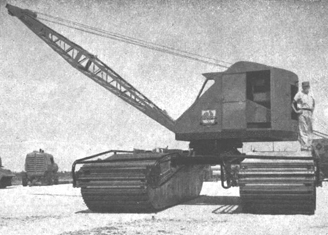

C-C Track Amphibious Dragline. - Crosses canals, creeks, streams under own power. All steel welded construction with aluminium cleated tracks. Specifications: tracks two 5 ft. (1.5 m²) wide x 23 ft. 10 in. (7.3 m²) long. Ground pressure area 17 sq. ft. (1.58 m²). Size 18 ft. (5.5 in.) wide x 23 ft. 10 in. (7.3 in:) long. Machine can be disassembled for hauling on highway or ocean freight. Weight total 25,000 lb. (11,240 kg.). Engine Ford 4 cylinder diesel 60 hp. Transmission speeds 4 fwd., 4 rev. Speed 3-5 m.p.h. (5-8 k.p.h.). Turning radius 40-50 ft. (12-15 in.).
MANUFACTURER: Quality Marsh Equipment Company Inc., Thibodaux, Louisiana, U.S.A.

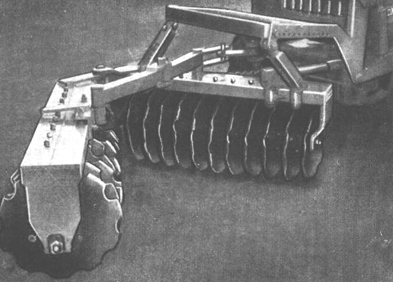

Motor Grader Rotary Scarifier. - The unit can scarify, pulverize, mix, aerate and still leave the front blade available for immediate use. It can be attached to any Caterpillar 12 or 14 grader equipped with hydraulic power. Two models of scarifier: 12 or 22 blades of 28 x % in. (711 x 6 mm.). -
MANUFACTURER: Towner Manufacturing Co., Santa Ana., California. U.S.A.

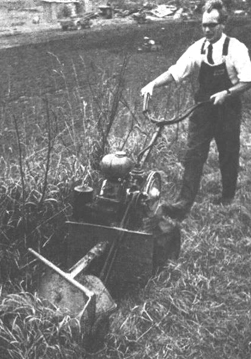

Rotary Slasher. - Rotary slasher is one of the many implements which can be mounted on the Hakorette. The machine is equipped with a 4.3 hp motor with three gears from 1 to 15 k.p.h.
MANUFACTURER: Hako Hang Koch und Sohn, Bad Oldealoe, Western Germany.
Improved Log Fork for 977 Traxcavator
Improved Log Fork for 977 Traxcavator. - An improved log fork for the 977 Traxcavator is manufactured by Caterpillar. Two clamps have been moved, inward slightly to provide a slot through which the operator can see the tip of the tine. An alternate set of top hinge points provides a choice of additional tilt to the front or rear as required. Use of the rear set of pivots provides enough tilt forward to allow the operator to pick logs selectively from a pile.
MANUFACTURER: Caterpillar Co., Peoria, Illinois, U.S.A.
Steer-O-Matic. - New automatic steerage axle assembly for trailer allows sharper turns, easier parking, reduces tire wear. A simple air-operated device, controlled from the truck cab, locks the unit if required. The unit is basically composed of a ball ring mount, frame, two leaf springs embedded in rubber cushions, a steering tongue, axles and wheels. Measurements of the unit are equivalent to a standard rigid unit.
MANUFACTURER: Pollock Industries Inc., Pottstown, Pennsylvania, U.S.A.
