ESTIMATION OF NO. OF TRIPS AND TOTAL CATCH ( L-II SURVEY )
ESTIMATION FROM EL-2
Province : ………………………………… District :………………………………… Name of Major Landing Center :…………………………
Year :…………………………………………Month …………………………………
Type of Fishing Gear
Local Name : | Ratio Estimation | □ RE | |
National Name : | Simple Estimation | □ SE |
1. Basic Calculation (please tick whichever applicable)
Date of Sample Day | Number of Trips by Size of Boat | Catch landed | Catch by Species (Local Name) | |||||||||||||
Catch sold to fish market (A of SL-5) | Actual catch (B of SL-5) | |||||||||||||||
(1) | (2.1) | (2.2) | (2.3) | (2.4) | (3.1) | (3.2) | (4.1) | (4.2) | (4.3) | (4.4) | (4.5) | (4.6) | (4.7) | (4.8) | (4.9) | (4.10) |
Sample Total | (A) | (B) | ||||||||||||||
Species Composition (%) 1 (%) | 100 % | |||||||||||||||
Estimated Catch by Species ![]() | (![]() |
1 RE : From Form SL-3, SE : Please calculate based on sample total
2. Estimation of Number of Trips
Size of Boat | No. of Trips on Sample Day (2 of 1 above) | Estimated No. of Trips (2) × R |
(1) | (2) | (3) |
3. Estimation of Total Catch (This is entered into 1 above)
Y : Y of SL-3
3.2 Simple Estimation : = B × R =
4 Conversion of Local Name of Species into National Name and Rounding of Kg. Figure into Ton Figure
Total![]() | By National Name of Species | |||||||||||||
Catch in Kg | ||||||||||||||
Catch in Tor |
ESTIMATION OF NO. OF TRIPS AND TOTAL CATCH (L - III SURVEY)
ESTIMATION FORM EL-3
Province | District |
Year | Quarter |
1. Type of Fishing Gear
Local Name | |
National Name |
2. Estimation
Name of Sample village | No. of Trips by Size of Boat | Catch by Species (Local Name) | ||||||||||||||
(1) | (2.1) | (2.2) | (2.3) | (2.4) | (3.1) | (3.2) | (3.3) | (3.4) | (3.5) | (3.6) | (3.7) | (3.8) | (3.9) | (3.10) | (3.11) | (3.12) |
Sample Total (A) | ||||||||||||||||
Estimates for District (A) × R |
* : From Form KL
3. Conversion of Local Name of Species into National Name and Rounding of Kg Figures into Ton Figures
Total![]() | By National Name of Species | ||||||||||||
Catch in kg | |||||||||||||
Catch in Ton |
ESTIMATION FORM EL-4
ESTIMATION FOR VALUE OF CATCH
Province : | District |
Quarter & Year: |
Marine Fishing / Inland Open Water Fishery* * Please strike out whichever not applicable
Species (Local name) | Qty. of Catch in Ton | Average price Rp./Kg | Value of Catch Rp. 1000.- |
(1) | (2) | (3) | (4) |
Total | |||
Note
This form is used for the estimation of value of catch by species for marine fishery or inland open water fishery at district level.
Quantity of catch is transfered from Reporting Form LL-3 or LP-2.
When fish auction market is available, average price is quoted from Form SL-3. Whereas, when no fish auction market is available, average price is enquired to representatives of fishermen.
ESTIMATION
FORM EL-5
ESTIMATION OF CATCH LANDED BY ORIGINAL
PROVINCES OF FISHING BOATS
1. Type of Fishing Gear
Province : | |
Local name : | District : |
National name : | Quarter/Year : |
2. Estimation of Catch Landed
By Original Provinces of Fishing Boats | N | P | % | ![]() | |
T o t a l | 100 | 0 | |||
Own province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province | |||||
Province |
Note:
Total catch estimated in Form EL-2 or EL-3 is allocated into the province of origin of fishing boat by using either the number of fishing boats by provinces which were based in this District (N) or the number of trips by provinces which landed their catch to this District (P).
N or P are enquired from either the fish auction market or representatives of fishermen.

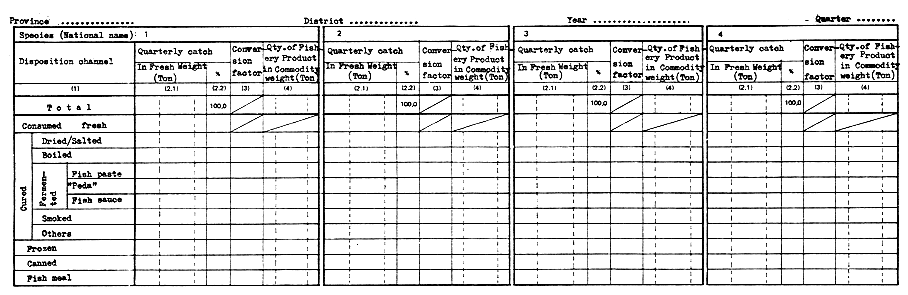

ESTIMATION FORM EL-6
ESTIMATION FOR DISPOSITION OF CATCH AND PRODUCTION OF FISHERIES COMMODITIES
Marine fishery/Open water fishery
Note
This form is used to estimate the quantity of catch disposed to each disposition channel and the quantity of fisheries commodity produced in this district. Estimation of these two figures refers to the case which occured within this district only.
Such estimations are done for each species separately.
At first, quarterly catch of a certain species which is already given either in Reporting Form LL-3 or LP-3 is transfered to “total” for (2.1).
Then, based on experiences gained from day to day work catch of that species which were disposed to each channel is estimated in terms of %. Such % is recorded into (2.2).
Such % is applied to quarterly catch of that species to estimate the quantity of catch disposed to each channel.
Then, for each disposition channel, most suitable conversion factor to estimate commodity weight based on fresh weight is sought and is recorded into (3). For example, when 20 kg. of dried fish is produced by 100 kg of fresh fish, conversion factor will be 0.2.
Such conversion factor is applied to the quantity of catch disposed to respective channel to estimate the quantity of fisheries commodity produced.
When the quantity of fisheries commodity produced is available at fish processing factory, such figure can be recorded into (4) at first. In such a case, the quantity of catch disposed to that channel is estimated by dividing the quantity of fisheries commodity produced by the conversion factor.

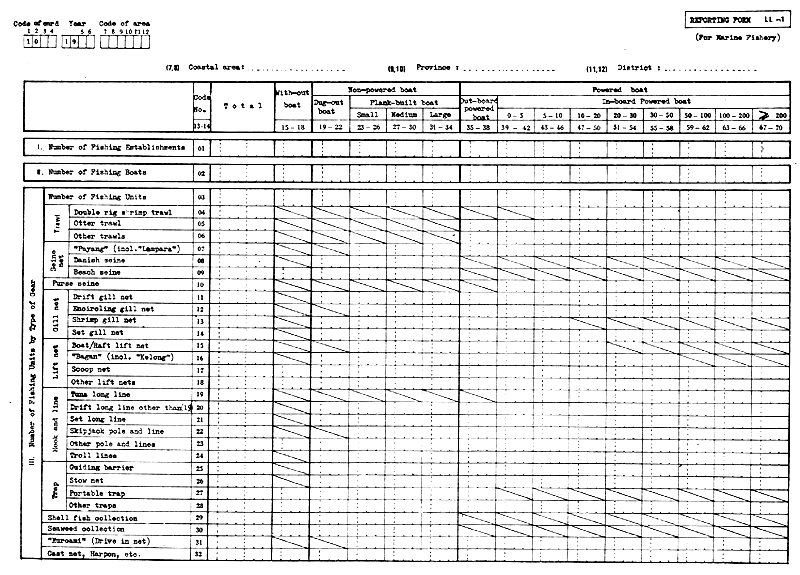

NUMBER OF FISHING ESTABLISHMENTS, FISHING BOATS AND FISHING UNITS
Note: This report is prepared once a year at the end of each calender year and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.

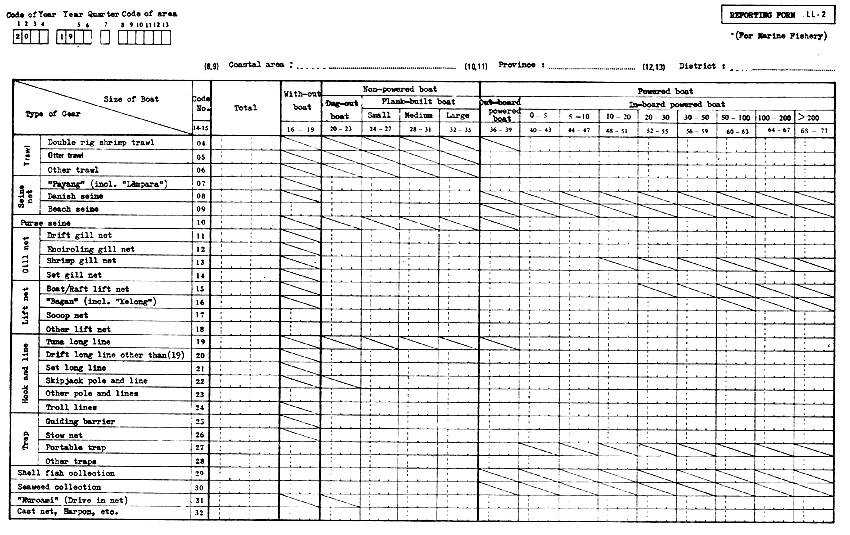

NUMBER OF TRIPS BY TYPE OF GEAR AND BY SIZE OF BOAT
Note: This report is prepared on quarterly basis at the end of each quarter and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.

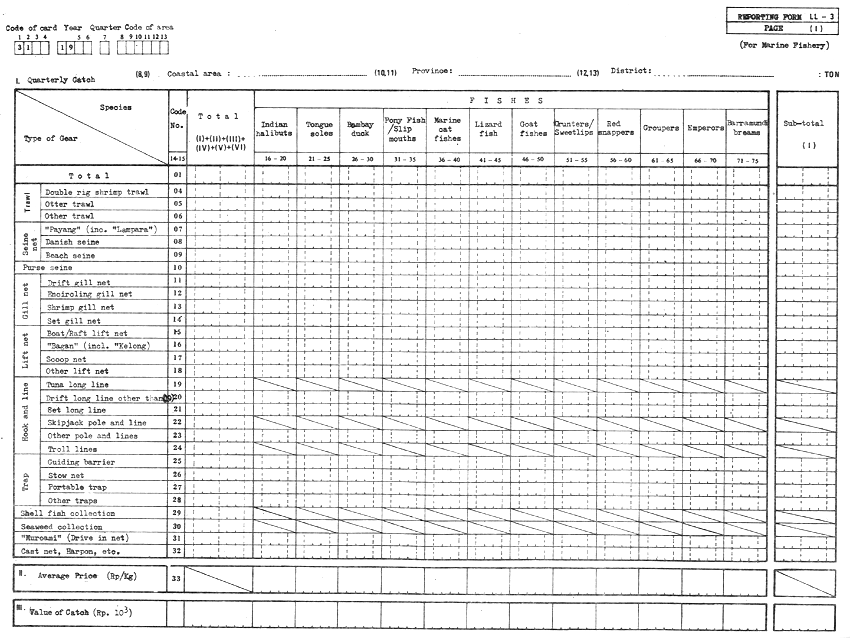

CATCH BY TYPE OF GEAR AND BY SPECIES AND VALUE OF CATCH BY SPECIES
Note: This report is prepared on quarterly basis at the end of each quarter and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service

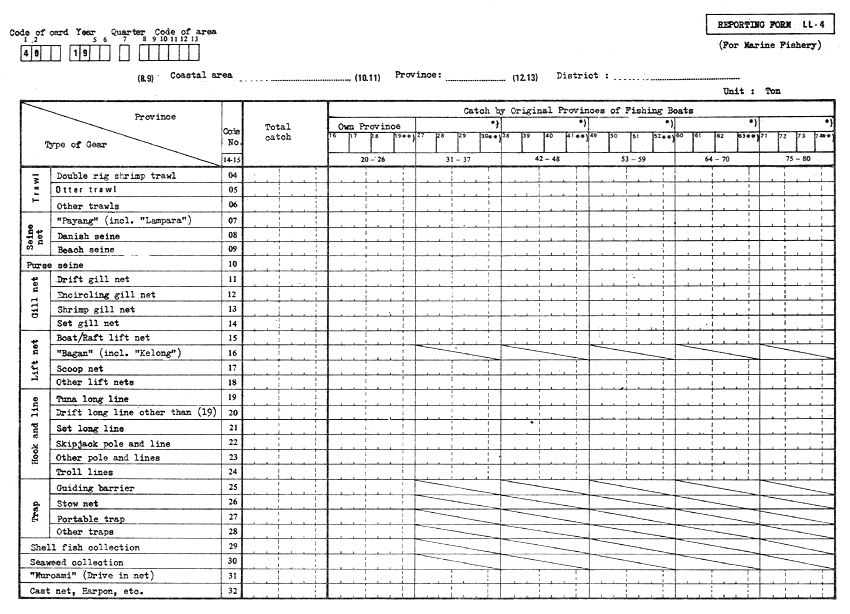

CATCH BY ORIGINAL PROVINCES OF FISHING BOATS
Note:
Total catch by type of gear must be the same as those given at the 1st page of Reporting Form LL-3
This reporting form is prepared on quarterly basis and is forwarded to Directorate General of Fisheries through Provincial Fisheries Services.

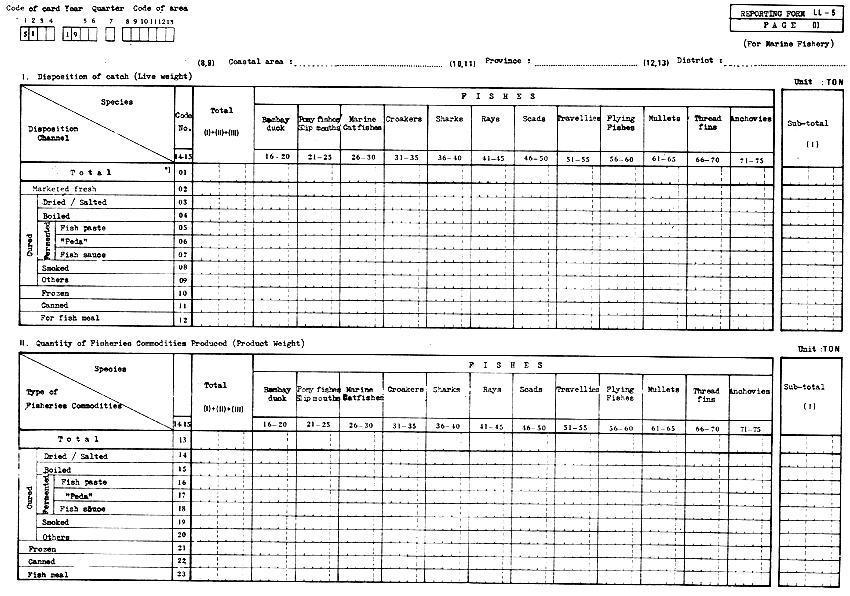

DISPOSITION OF CATCH AND QUANTITY OF FISHERIES COMMODITIES PRODUCED
Note: This reporting form is prepared on quarterly basis at the end of each quarter and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.
FORM K
NUMBER OF FISHING/CULTURE HOUSEHOLDS
ENGAGED IN CAPTURE IN OPEN WATER/FRESHWATER CULTURE
District: | Subdistrict: |
Village: | Name of open water 1: |
Name of: | Number of fishing/culture households engaged in: | |||||
RK2 | RT2 | Capture in open water | Freshwater culture | |||
Without boat | With boat | Fish pond | Cage | Paddy field | ||
Total | ||||||
Note: This survey is done through the chief of the village, who will do the survey with the help of chiefs of RK and RT. The number of fishing/culture households is counted for those who have engaged in fishing/culture during the past one year prior to the date of survey.
1 Name of open water is entered only when such an open water to be surveyed exists in this district.

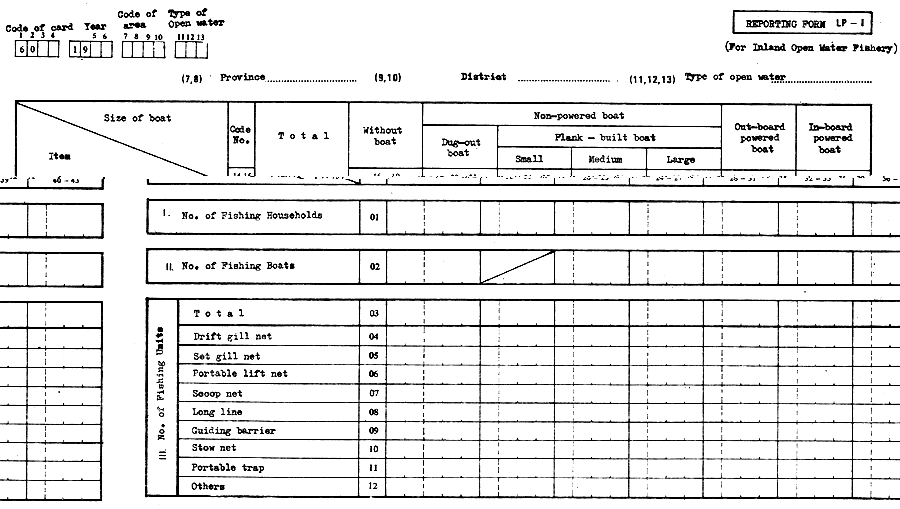

NUMBER OF FISHING HOUSEHOLDS, FISHING BOATS AND FISHING UNITS BY TYPE OF GEAR AND BY SIZE OF BOAT
Note : This reporting form is prepared once a year at the end of each calendar year and is forwarded to the Directorate General of Fisheries through Provincial Fisheries Service.

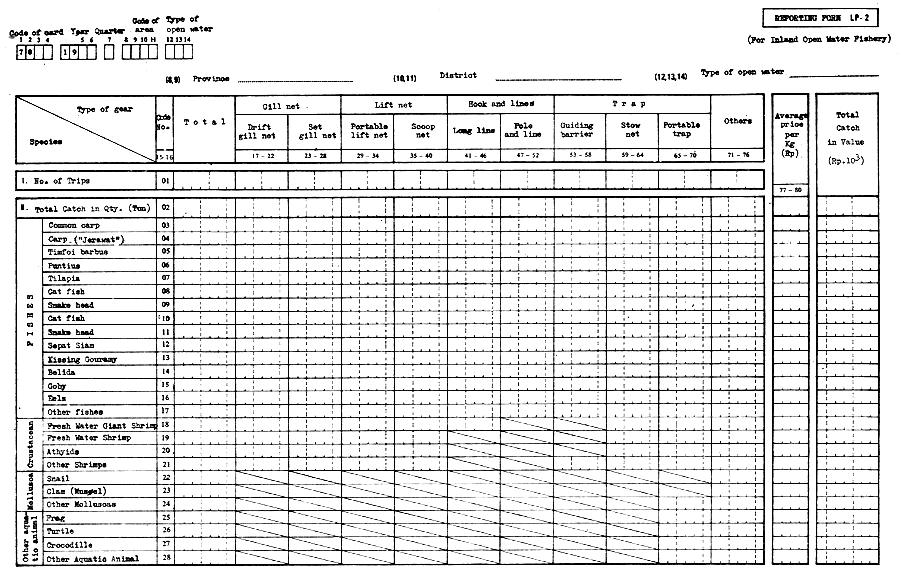

NUMBER OF TRIPS BY TYPE OF GEAR AND CATCH BY TYPE OF GEAR AND BY SPECIES
Note : This report is prepared on quarterly basis and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.

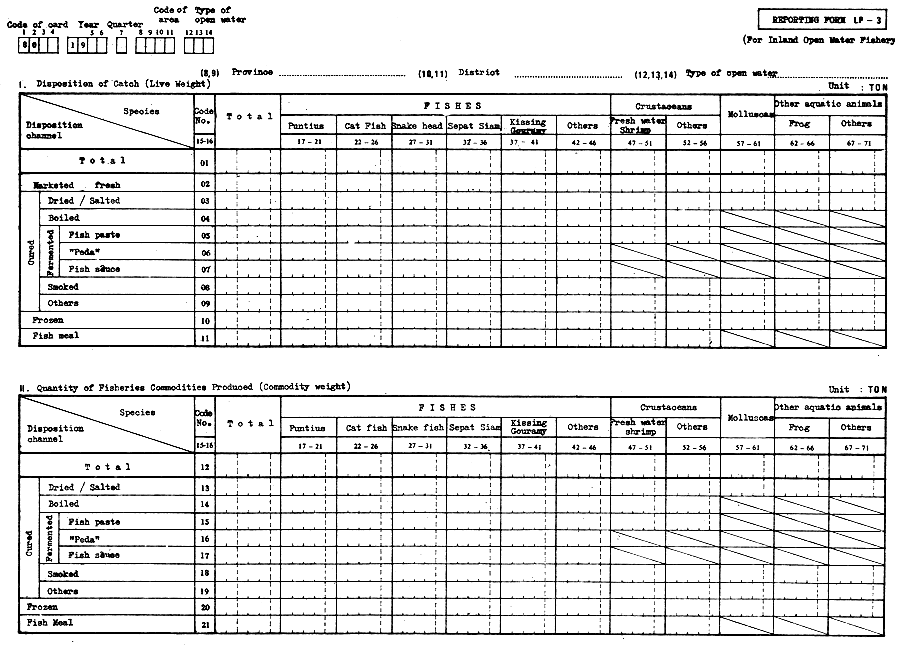

DISPOSITION OF CATCH AND FISHERIES COMMODITIES PRODUCED
Note : This report is prepared on quarterly basis and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.
SELECTION OF SAMPLE VILLAGE FOR CULTURE
Year : | Type of Culture : | FORM KB |
Province : | District : |
Sub - District | Village | Size of Village | Selection of Sample village | ||||||
Name of Sub - District | Fishery Extension Officer: Exist (v) Not (-) | Sr. No. | Name of village | Number of RTP | Total Area of Pond | Accumulation of RTP based on (3.1) | Please stick (v) wherever applicable | ||
Selected by PPS | Agreed by DFS | Final | |||||||
(1.1) | (1.2) | (2.1) | (2.2) | (3.1) | (3.2) | (4.1) | (4.2) | (4.3) | (4.4) |
Total | |||||||||
PFC : Provincial Fishery Service
DFS : District Fishery Service
PPS : Probability Proportional to Size.
RTP : Fishing Household
SURVEY FORM SB-1 | |
Page : |
COMPLETE LIST OF CULTURE HOUSEHOLDS IN SAMPLE VILLAGE
Year : | ||||
Province : | District : | Sub District : | Sample village : |
Culture Household | Gross Area of Pond (Ha) | No. of Fish Seed Stocked by Species (103) | Fish Seed Produced by Disposition and by Species | Quantity Used (Kg) | ||||||||||||
Fertilizer | Pesticide | |||||||||||||||
No. | N a m e | Milk fish/Common corp | Used for Own Pond | Sold | Organic | Inorganic | ||||||||||
0–5Cm | >5 Cm | |||||||||||||||
(1) | (2) | (3) | (4.1) | (4.2) | (4.3) | (4.4) | (4.5) | (5.1) | (5.2) | (5.3) | (5.4) | (5.5) | (5.6) | (6.1) | (6.2) | (6.3) |
Totals | ||||||||||||||||
(Note) 1. This form is newly prepared at the beginning of every year, and at first (1), (2) & (3) are recorded.
2. Survey for (4.1) through (6.3) is done at the end of every year.
YIELD OF SAMPLE CULTURE HOUSEHOLDS
AND ESTIMATION OF YIELD FOR SAMPLE VILLAGE
SURVEY FORM SB-2
Year : | Quarter : | From: | Until | : | Type of culture : | |
Province : | District : | Sub-District : | Sample-Village : |
Name of Sample Culture Household | Yield by species (local name) (Kg) | Area of Pond (Ha) | ||||||||||
Total | Cross Area | Net area | ||||||||||
(1) | (2.1) | (2.2) | (2.3) | (2.4) | (2.5) | (2.6) | (2.7) | (2.8) | (2.9) | (3.1) | (3.2) | |
1 | ||||||||||||
2 | ||||||||||||
3 | ||||||||||||
4 | ||||||||||||
5 | ||||||||||||
6 | ||||||||||||
7 | ||||||||||||
8 | ||||||||||||
9 | ||||||||||||
10 | ||||||||||||
Total (A) | (B) | |||||||||||
Estimation (A) × (R) |
(Note) 1. This form is used for quarterly survey of yield. However, survey for area of pond is done only once a year at the time of survey for 4th quarter.
2. Yield is enquired for every sample household and is recorded into respective entry.
ESTIMATION FOR THE NUMBER OF CULTURE HOUSEHOLDS AND AREA OF POND
ESTIMATION FORM EB-1
Year : | Type of Culture : |
Province | District : |
1. No. of Culture Households by Area of Pond, by Type of Fish Seed Stocked and by Use of Fertilize / Pestioide
Name of Sample Village | Total No. of Culture Households | By Area of Pond (Ha) | By Type of Fish Seeds Stocked | By Use of Fertilizer/Pestioide | ||||||||
For Brackish Water Culture | Milk fish | Shrimp | Milk fish & shrimp | Fertilizer | Pesticide | |||||||
<2 | 2–5 | 5–10 | >10 | Organic | In-Organic | Mixed | ||||||
For Fresh Water Culture | ||||||||||||
<0.1 | 0.1–03 | 0.3–05 | >0.5 | |||||||||
(1) | (2.1) | (2.2) | (2.3) | (2.4) | (2.5) | (3.1) | (3.2) | (3.3) | (4.1) | (4.2) | (4.3) | (4.4) |
Total (A) | ||||||||||||
Estimate (A) × (R1) |
Where
N = Total no. of culture households throughout this district (from Form KB)
n = No. of culture households throughout all sample villages (from Form KB)
2. Area of Pond, No. of Fish Seed Stocked and Quantity of Fertilizer & Pesticide Used
Name of Sample Village | Area of Pond | No. of Fish Seed Stocked by species (103) | Fish Seed Produced by Species | Quantity Used (Kg) | ||||||||||||
Gross (Ha) | Net (Ha) | Fertilizer | Pesticide | |||||||||||||
Used for own pond | Sold | Organic | In-Organic | |||||||||||||
Milk fish/Common carp | ||||||||||||||||
0 –5 Cm. | >5 Cm. | |||||||||||||||
(1) | (2.1) | (2.2) | (3.1) | (3.2) | (3.3) | (3.4) | (3.5) | (4.1) | (4.2) | (4.3) | (5.1) | (5.2) | (5.3) | (6.1) | (6.2) | (6.3) |
Total (A) | ||||||||||||||||
Estimate (A) × (R2) |
Where
Y = Total area of pond throughout this district (from Form KB)
y = Area of pond throughout all sample villages (from Form KB)
ESTIMATION FOR QUANTITY AND VALUE OF YIELD BY SPECIES
ESTIMATION FORM EB-2
Year : Quarter : From month : Until Type of culture:
Province : District :
Name of Sample Village | Yield by Species (local name) (Kg) | ||||||||||
Total | |||||||||||
(1) | (2.1) | (2.2) | (2.3) | (2.4) | (2.5) | (2.6) | (2.7) | (2.8) | (2.9) | (2.10) | (2.11) |
Total (A) | |||||||||||
Estimate (A) × (R2) |
Conversion of Local Name into National Name and Rounding
National name | Total | ||||||||||
Rounding (Ton) |
Estimation of Value of Yield
Average price per Kg(Rp) | |||||||||||
Value (Rp103) |
Where
Y : Total area of pond throughout this district (from Form KB)
y : Area of pond throughout all sample villages (from Form KB)

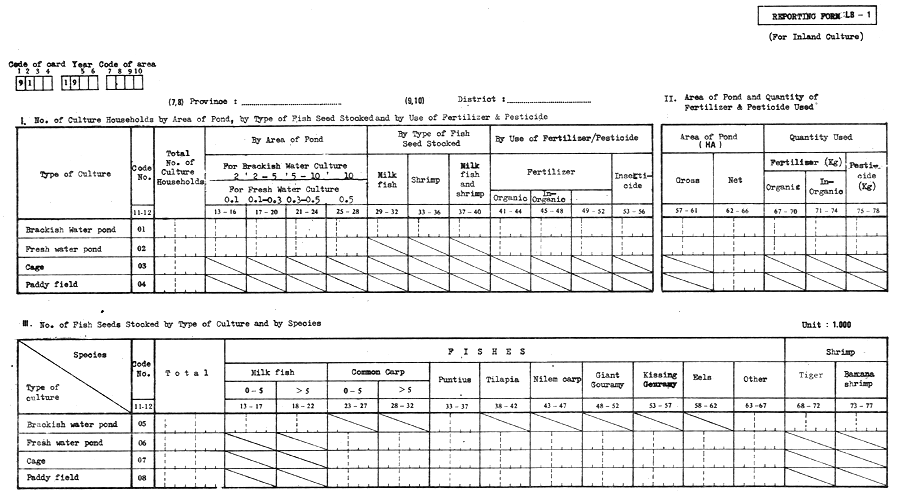

NUMBER OF CULTURE HOUSEHOLDS, AREA OF POND, FISH SEED STOCKED BY SPECIES AND BY TYPE OF CULTURE
Note : This report is prepared once a year at the end of each calendar year and is forwarded to Directorate General of Fisheries through Provincial Fisheries Service.

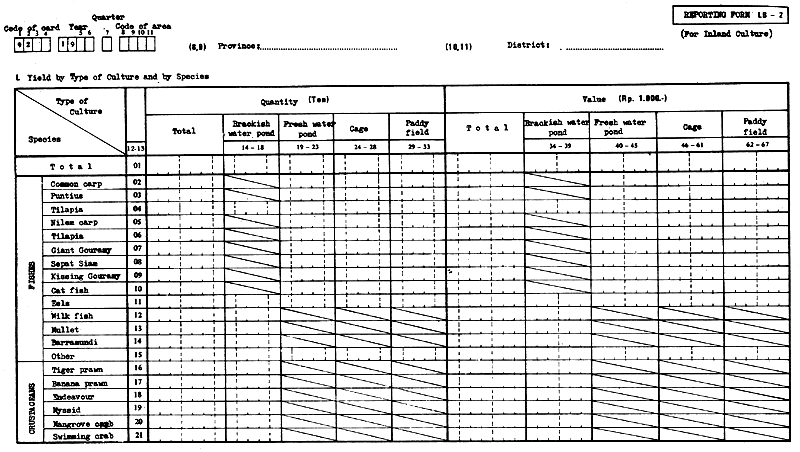

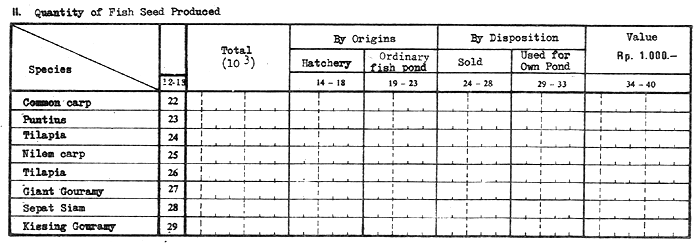

YIELD AND QUANTITY OF FISH SEEDS PRODUCED
