8. LIST OF REFERENCES

Jamandre, T.J. and H.R. Rabanal, 1975 Engineering aspects of brackish water aquaculture in the South China Sea Region. SCS/75/WP/16: 37p., 17 annexes

Rajaona, S.G., 1976 Etat actuel de l'aquiculture a Madagascar. In Symposium on Aquaculture in Africa, Accra, Ghana, 30 September-2 October 1975. CIFA Tech. Pap., (4) Suppl. 1: 45–65

Rajaona, S.G., A. Ralison and M. Raveloson, 1975 Plan national de developpement de l'aquiculture a Madagascar. In FAO Aquaculture Planning in Africa, Accra, Ghana, 2–27 July 1976: 66–85

Table 1. Evaluation of suitability of sites visited

(X1)Socio-economic impact (X3)Water supply system (X1)Available area (X2)Water quality (X3)Soil quality (X3)Vegetation (X0.5)Elevation and tidal range (X3)Mechanization (X1)Local labour (X0.5)Protection (wind & flood) (X1)Power availability (X0.5)Fry availability (X1)pH (X1)Salinity (X0.5)Weighted total (%)Remarks
 5555684536346652Sites I-IV have average wind velocity of 21 km/hr; salinity of bay water recorded 36–38 ppt; and observed pH 7-10.
 5465684436346652
 7947683647567861
 7766672736457757
 6646463335436448Sites A and B have average wind velocity of 14 km/hr; river water salinity 31 ppt; pH of 7-8
 5443462334325538

NOTE: Partly based on Jamandre and Rabanal (1975). Sites with rating of over 50% may be recommended for development; obviously Sites III and IV offer best possibilities for development.

Table 2. Meteorological information - Diego Suarez

 Barometric pressure
(mm)
Average temperatureRelative humidity
(%)
 W I N DAverage evaporation
(mm)
Average rainfall
(mm)
velocity
(km/h)
Dominant direction
(wind)
Calm
(%)
Max.
(°C)
Min.
(°C)
Periods1957–651957–651957–651931–601957–651956–65
Months
Jan.
1010.930.423.182276.514W18   112.8
Feb.1010.230.222.984211.413W20     82.0
Mar.1010.730.323.083187.215E16   107.6
Apr.1011.630.522.677  55.719ESE8164.0
May1013.029.921.371    8.121ESE3227.5
June1015.828.920.272    8.123ESE3222.3
July1016.628.219.568    6.525ESE2241.3
Aug.1016.728.419.467    7.227ESE1274.4
Sept.1016.329.320.168    4.728ESE1302.1
Oct.1015.330.321.368  10.629ESE1311.1
Nov.1013.431.222.672  27.824ESE2225.7
Dec.1011.831.123.078111.116E12   140.7
Annual average1013.629.921.674914.921-7200.9
(25.75)

Table 3. Meteorological information - Majunga

 Barometric pressure
(mm)
Average temperatureRelative humidity
(%)
Average rainfall
(mm)
WINDAverage evaporation
(mm)
Velocity
(km/h)
Dominant directionCalm
(%)
Max.
(°C)
Min.
(°C)
Periods1957–651957–651957–651931–601957–651951-
Months
January
1010.630.823.782465.812NW7112.4
February1009.930.623.884369.712NW8  78.0
March1010.431.323.682282.412E7  90.1
April1011.932.522.774  56.811E3127.7
May1014.431.720.168    7.912ESE3165.5
June1016.630.618.566    2.612ESE3215.3
July1017.730.417.863    1.014ESE3184.4
August1017.531.218.262    2.114ESE2208.2
September1016.532.119.663    2.616ESE2206.3
October1015.132.421.666  23.716NW4200.9
November1013.032.023.572109.615NW5158.0
December1011.530.823.880242.612NNW6116.8
Annual average1013.831.421.4721566.8   13-4155.6
(26.4)

Table 4. Data on excavating required in project site
(cut)

I. PONDS

PondArea
(m2)
Bottom of ponds (m)Depth of excavation (m)Volume
(m3)
Total
(m3)
1-A8 7501.70.76 125
1-B5 0001.80.63 000
2-A3 0001.80.61 800
2-B3 0001.80.61 800
2-C3 0001.80.61 800
2-D3 0001.80.61 800
2-E7 2751.80.64 365
2-F10 000   1.80.66 000
35 000  1.95  0.452 250
420 000   1.31.122 000
540 000   1.70.728 000   78 940

II. CANALS

CanalLength
(m)
Depth
(m)
Bottom
(m)
Area
(m2)
Volume
(m3)
Total
(m3)
AA'4001.82.57.743 096
BB'275  1.651.55.191 429.31
CC'2001.21.02.64528   5 053

TOTAL CUT = 83 993.31 m3

Table 5. Data on dike formation in project site (fill)

DikeLength
(m)
Height
(m)
Crown
(m)
Area
(m2)
Volume
(m3)
A2751.53.0      6.75    1 856.25
B  502.03.0   10.0   500
C-12752.53.5   15.04 125
C-22002.02.5     9.01 800
D-1  971.52.0       5.25       509.25
D-2  972.03.0   10.0   970
D-3  971.52.0       5.25       509.25
D-4  972.03.0   10.0   970
D-51302.53.0     13.75   1 787.5
E2003.04.0   21.04 200
F2753.07.0308 250
G2753.08.0339 075
H2753.07.0308 250
GH-1  504.05.0361 800
GH-2  504.05.0361 800
GH-3  504.05.0361 800
I4003.07.03012 000
J4002.56.0      21.258 500
K4003.010.0   3915 600

TOTAL FILL = 84 302.25 m3

Summary:Total fill (dikes)= 84 302.25 cubic meters
  -
Total cut (ponds, canals)= 83 993.31 cubic meters
        308.94 cubic meters

The difference is considered negligible and shall be more than taken up by indentation in the dikes where there are gates.

Table 6. Details of water control gates for project

Gate numberDesignationNumber of openingsWidth of openingsFloor top elevationLength/height*R e m a r k s
G-1Primary21.0 m   0.6; 0.0For economy the width of dikes are narrowed and the top elevations lowered. The length and width of the dikes should be adjusted to the narrowed and lowered dikes2nd (V = 0.0 elevation) for pump to be operational (sump-submerged) all the time

See alternate design given with provision for vertical axial flow propeller pump.

G-2Gross gate61.0 m   1.0Suggested heights from ground elevation of 2.4 m2 facing east
2 facing north
1 facing south
1 facing west

G-3Secondary11.0 m   1.11.5 – 2.0 m
G-411.0 m   1.3
G-511.0 m   1.1
G-611.0 m   1.2

G-3-1Tertiary10.75 m1.3Suggested height is 1.25-1.5 m from ground elevation of 2.4 m
G-3-210.75 m1.3
G-3-310.75 m1.3
G-3-410.75 m1.3
G-3-510.75 m1.3
G-3-610.75 m1.3

G-3-1-1Nursery10.50 m1.5Suggested height is 0.7– 1.5 m from ground elevation of 2.4 m
G-3-1-210.50 m1.5
G-3-4-110.50 m1.6
G-3-4-210.50 m1.6Wooden gates
G-3-5-110.50 m1.6
G-3-5-210.50 m1.6

GA-1Overflow12.0 m   2.1 Overflow sides and bottom wooden, protected - bottom protruding over dike side
GA-212.0 m   2.1
GA-312.0 m   2.1
GA-412.0 m   2.1
GA-512.0 m   2.1

* Floor top to highest V

Fig. 1

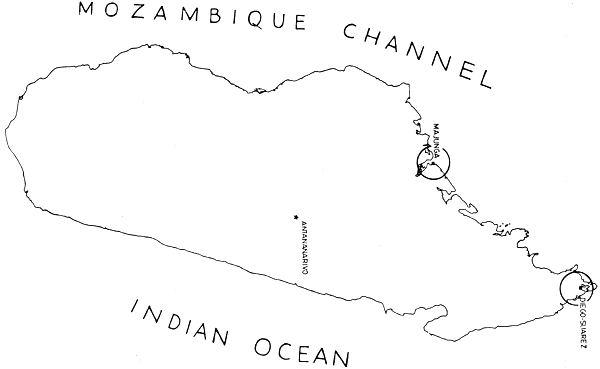

Fig. 1. Map of Madagascar indicating location of Diego Suarez and Majunga

Fig. 2

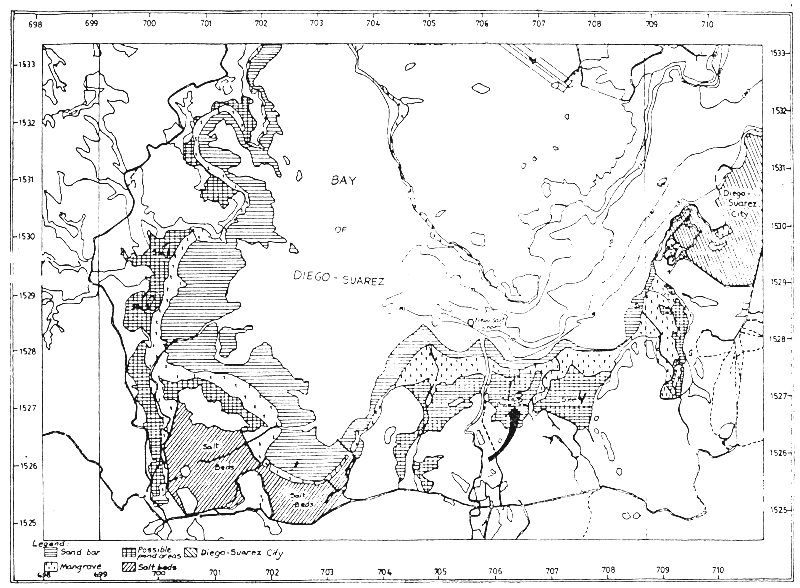

Fig. 2. Project location map of Diego Suarez selected site

Fig. 3

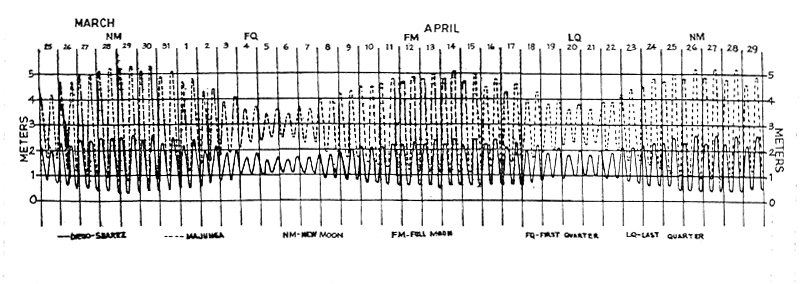

Fig. 3. Graphic presentation of typical tidal cycle, Diego Suarez and Majunga
(March 25 to April 29, 1979)

Fig. 4

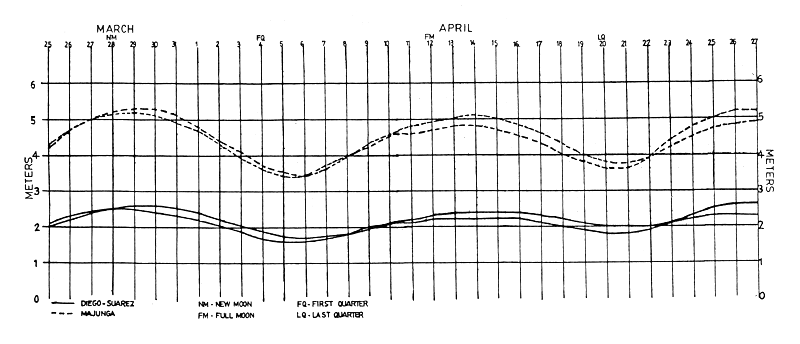

Fig. 4. Typical cycle for high tides in Diego Suarez and Majunga
(March 25 to April 27, 1979)

Fig. 5

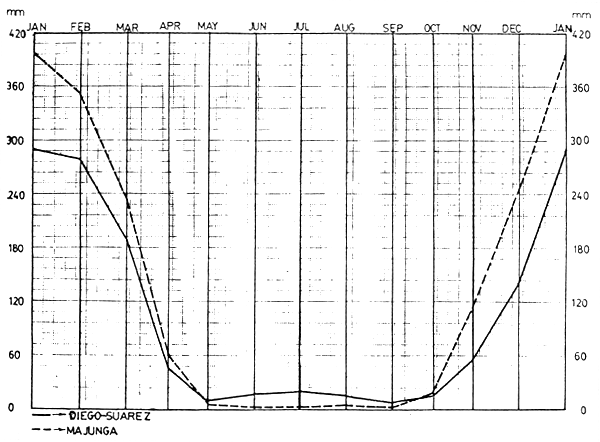

Fig. 5. Mean monthly rainfall for 26 years (1950–76)

Fig. 6

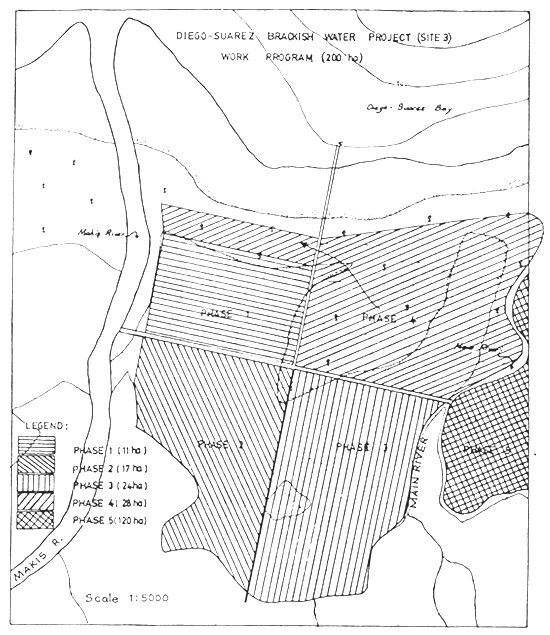

Fig. 6. Diego Suarez brackishwater aquaculture project phase development programme

Fig. 7

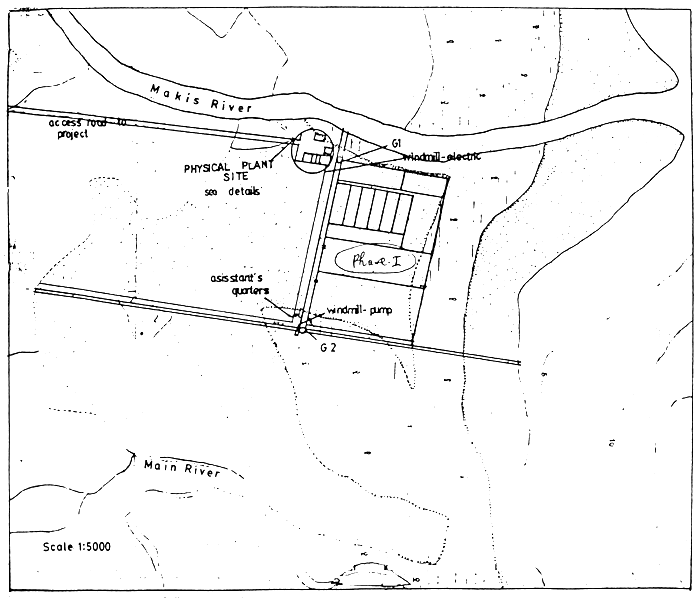

Fig. 7 Diego-Suarez brackishwater aquaculture project general layout
Site III, 11 ha

Fig. 8

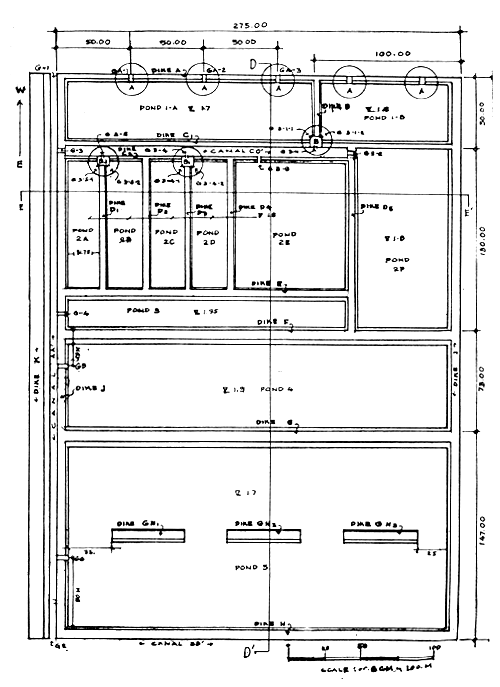

Fig. 8. Detailed layout of Diego Suarez project with key to diagrams

Fig. 9DIKE A
LENGTH:275. M
HEIGHT:1.50 M
CROWN:3.00 M
BASE:6.00 M
SLOPE:1:1 (45o L)
VOLUME:1856.25
AREA:6.75

CROSSECTIONAL VIEW OF DIKE A

SCALE: .5 CM - 1M

Fig. 9

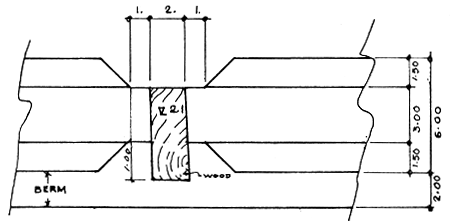

TOP VIEW SHOWING OVERFLOW SECTION

SCALE: .5 CM - 1 M

Fig. 9Fig. 9
FRONT VIEW
SCALE : .5CM - 1M
DETAIL A
noT DRAWN TO SCALE

Fig. 9Details of overflow section on perimeter dike (Dike A)

Fig. 10

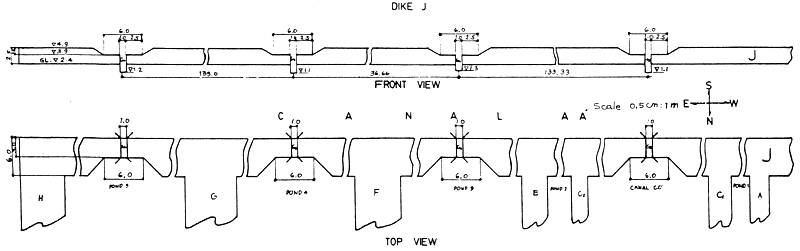

Fig. 10. Details of Dike J

Fig. 11

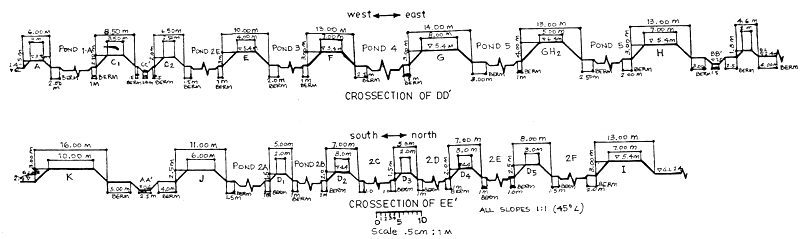

Fig. 11. Cross-sectional details of ponds in Phase I

Fig. 12DIKE B
LENGTH:50. M
HEIGHT:2.00 M
CROWN:3.00 M
AREA:10.00 M
VOLUME:500. M
SLOPE:1:1 (45o L)
BASE:7.00 M

CROSSECTIONAL VIEW OF DIKE B

SCALE : .5 CM - 1. M

Fig. 12

DETAIL B
CAN APPLY FOR B1 & B2

Fig. 12 Details of Dike B

Fig. 13

NOTE: Length and elevation to be altered to fit new and variable measurements of dikes

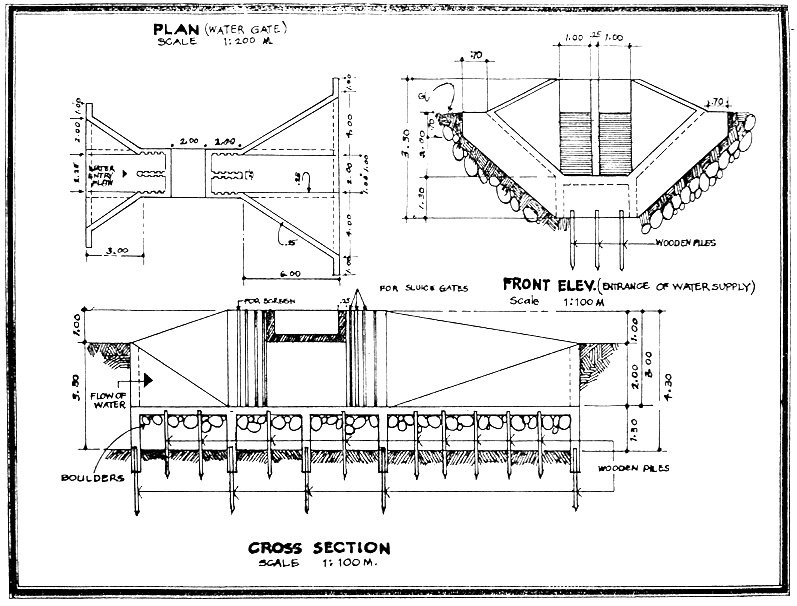

Fig. 13 Details of primary gate, double water passage

Fig. 14

Fig. 14

SECTION A-A

Note: length and elevations to be altered to fit new and variable measurements of respective dikes.

Fig. 14

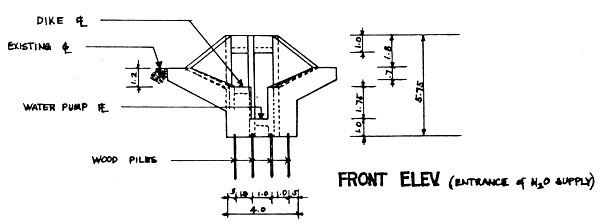

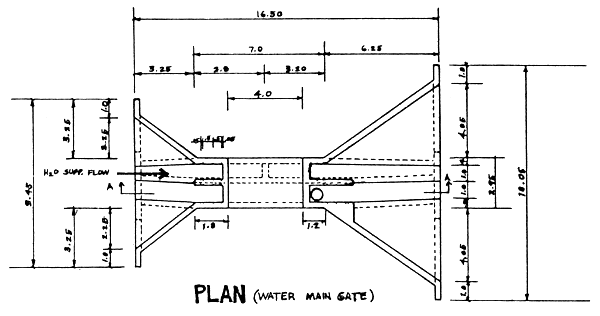

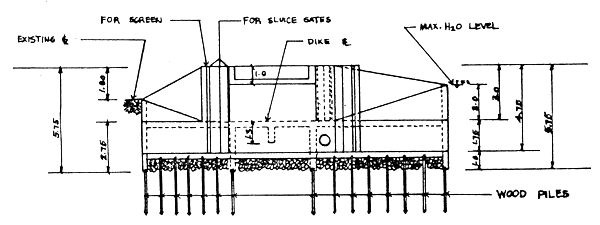

Fig. 14 Alternate primary gate plan, with provision for vertical propeller pump

Fig. 15

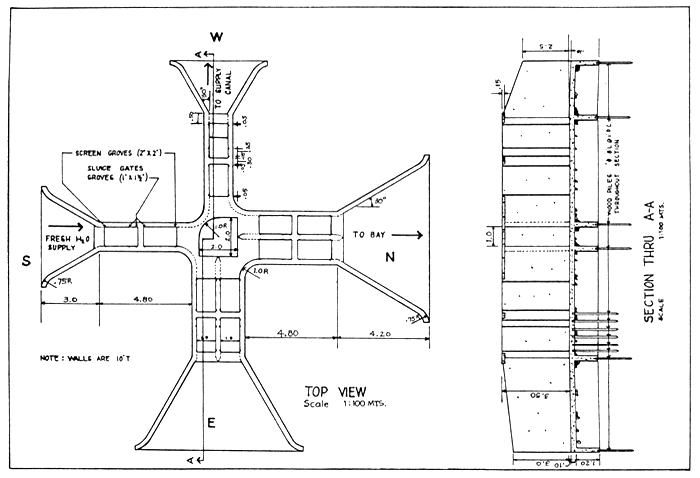

Fig. 15. Details for concrete crossgate

Fig. 16

Note: Length and elevations to be altered to fit new and variable measurements of respective dikes.

For G3 to G5

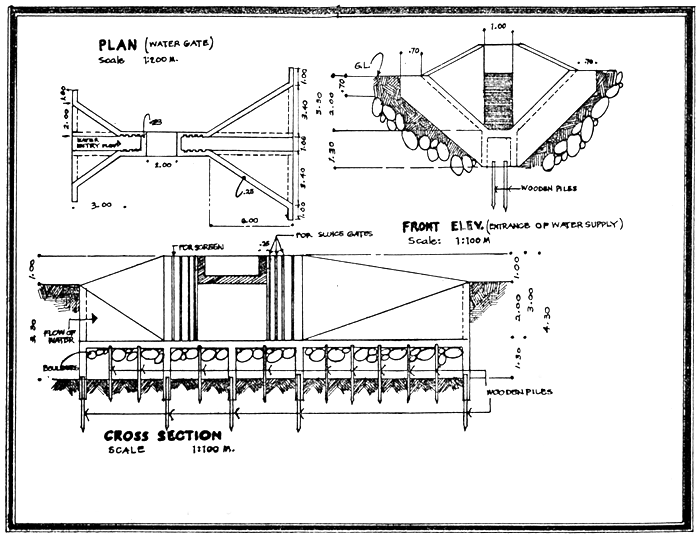

Fig. 16 Details for secondary concrete gate, single water passage

Fig. 17

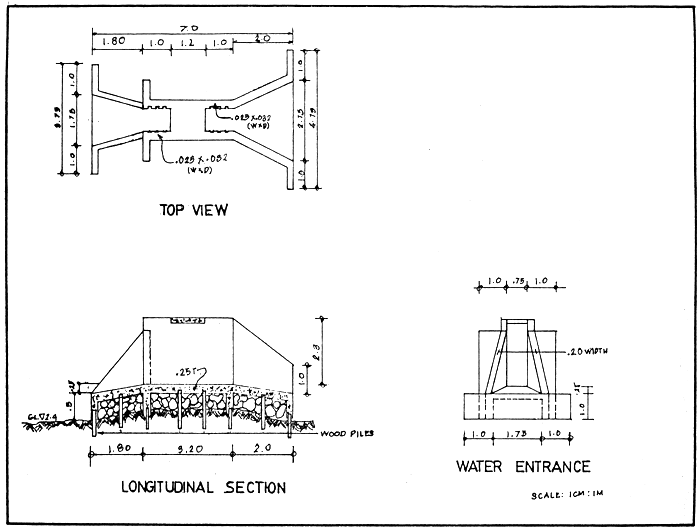

Fig. 17 Details for tertiary concrete gate

Fig. 18Fig. 18NOTE:Length and elevations to be altered to fit new and variable measurements of respective dikes.
Opening is .75m for tertiary gates G3-1 to G3-5.
Opening is .5m when used for fry ponds G3-1-1 to G3-5-2.
PLAN
SCALE 1: 100 MT.
DETAIL A
Fig. 18Fig. 18
END ELEVATION
SCALE 1: 100 MT.

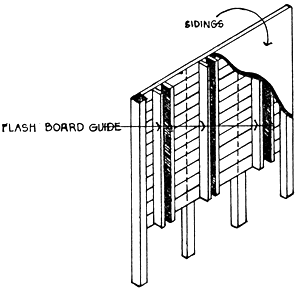

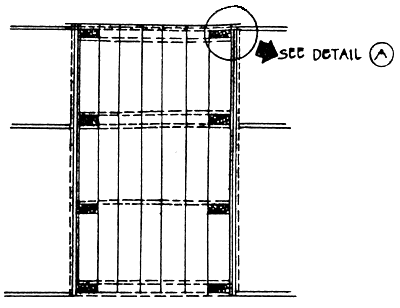

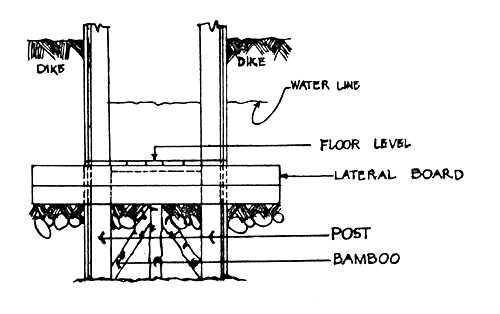

Fig. 18 Tertiary wooden gate-Details A

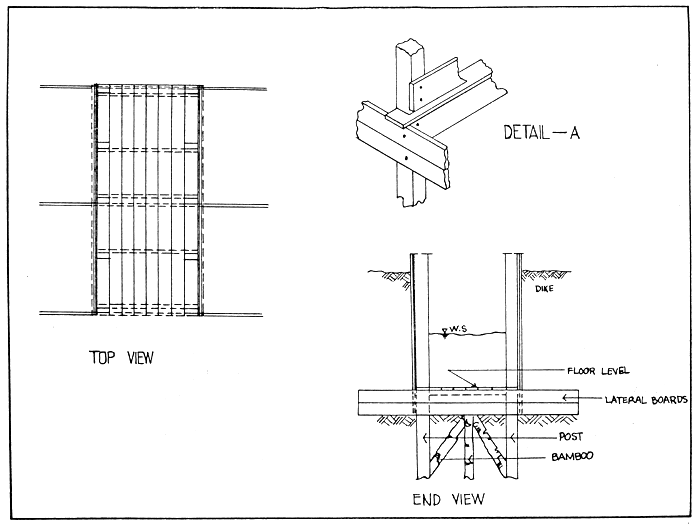

Fig. 19 Tertiary wooden gate-Details B

Fig. 20

Note: length and elevations to be altered to fit new and variable measurement of dikes.

Fig. 20

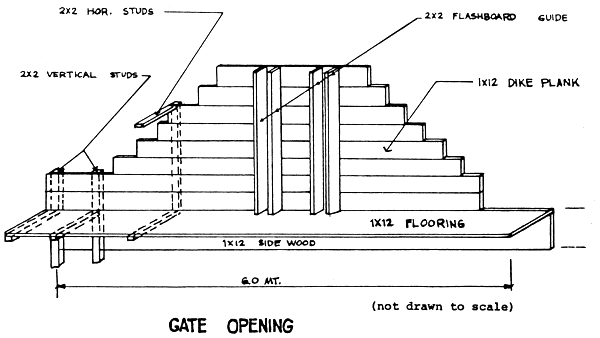

TYPICAL WOODEN GATE
(Usually for Fry Pond)

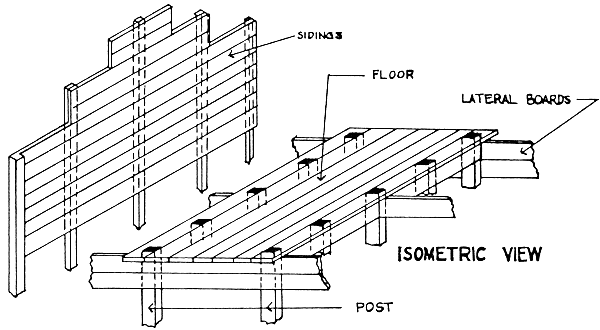

Fig. 20 Tertiary wooden gate-Details C

Fig. 21

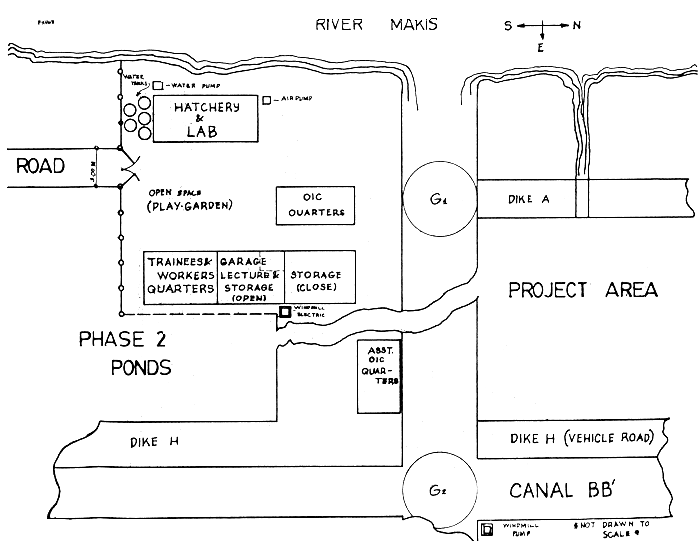

Fig. 21 Project physical site and arrangements
